Fujitsu PRIMERGY RX2530 M6

Example EP6xxi internal RAID controller

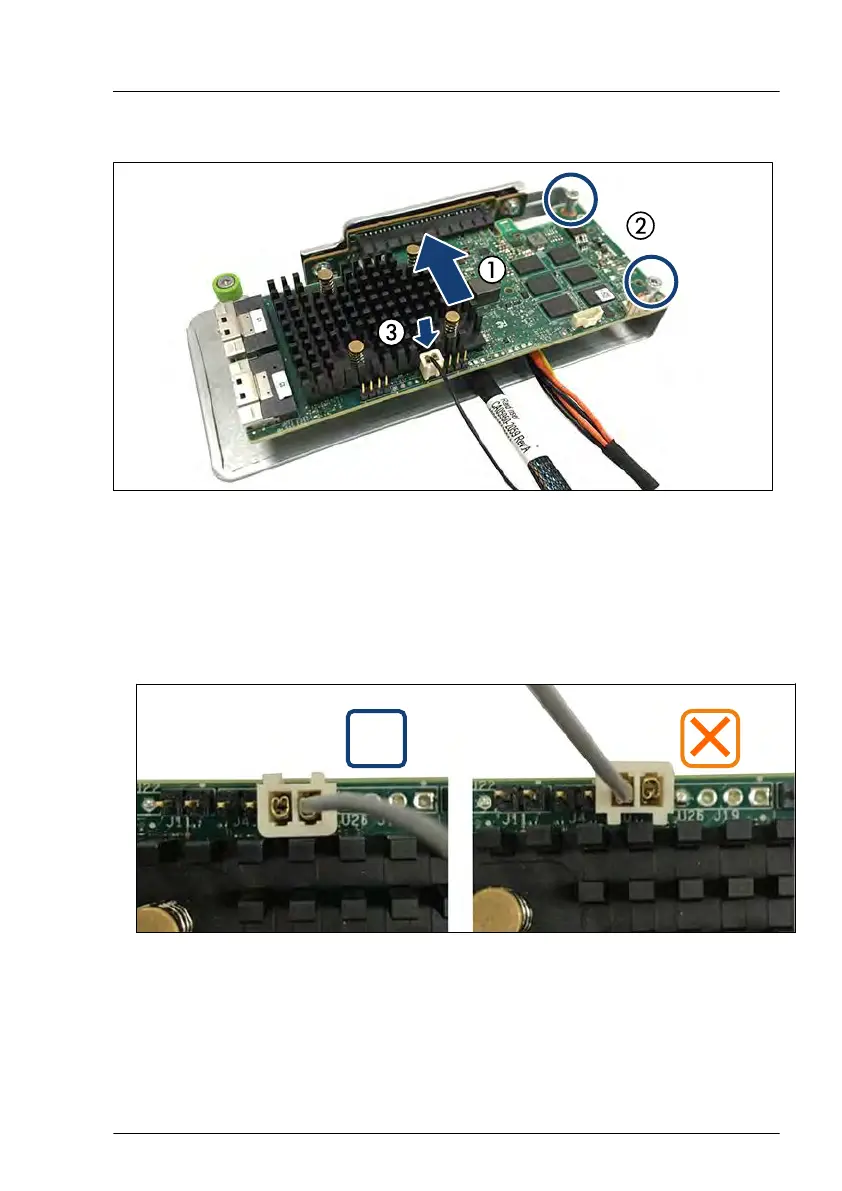

Figure 159: Installing the EP6xxi internal RAID controller
▶
Carefully press the internal RAID controller into the riser card slot, until it
clicks into place (1).
▶
Fasten the internal RAID controller with two screws (2).
▶
Connect the HDD LED cable (3).
OK
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 239
