Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

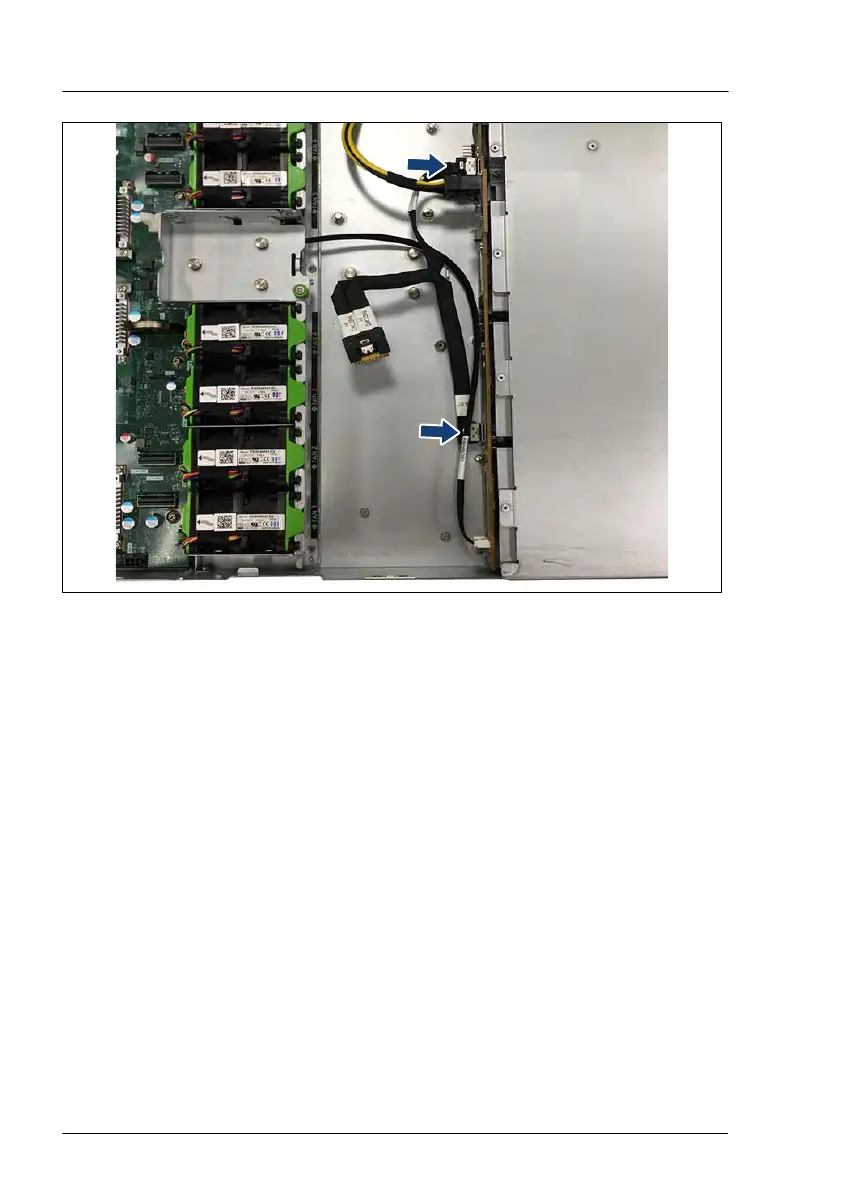

Figure 160: Connecting the SAS cable to the HDD backplane

▶

Connect the SAS cable to the HDD backplane.

Expansion cards and backup units

240 Upgrade and Maintenance Manual RX2530 M6
