Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Shutting down the server" on page 48.
▶
If applicable, "Removing the front cover with lock" on page
48.
▶
"Disconnecting the power cord" on page 49.
▶
"Getting access to the component" on page 52.
▶
Remove the riser module 2 and the riser module 3, see "Handling riser
modules" on page 68.
Preparing the full height riser module
The riser card from riser module 3 has to be removed and is installed on
the full height riser module.

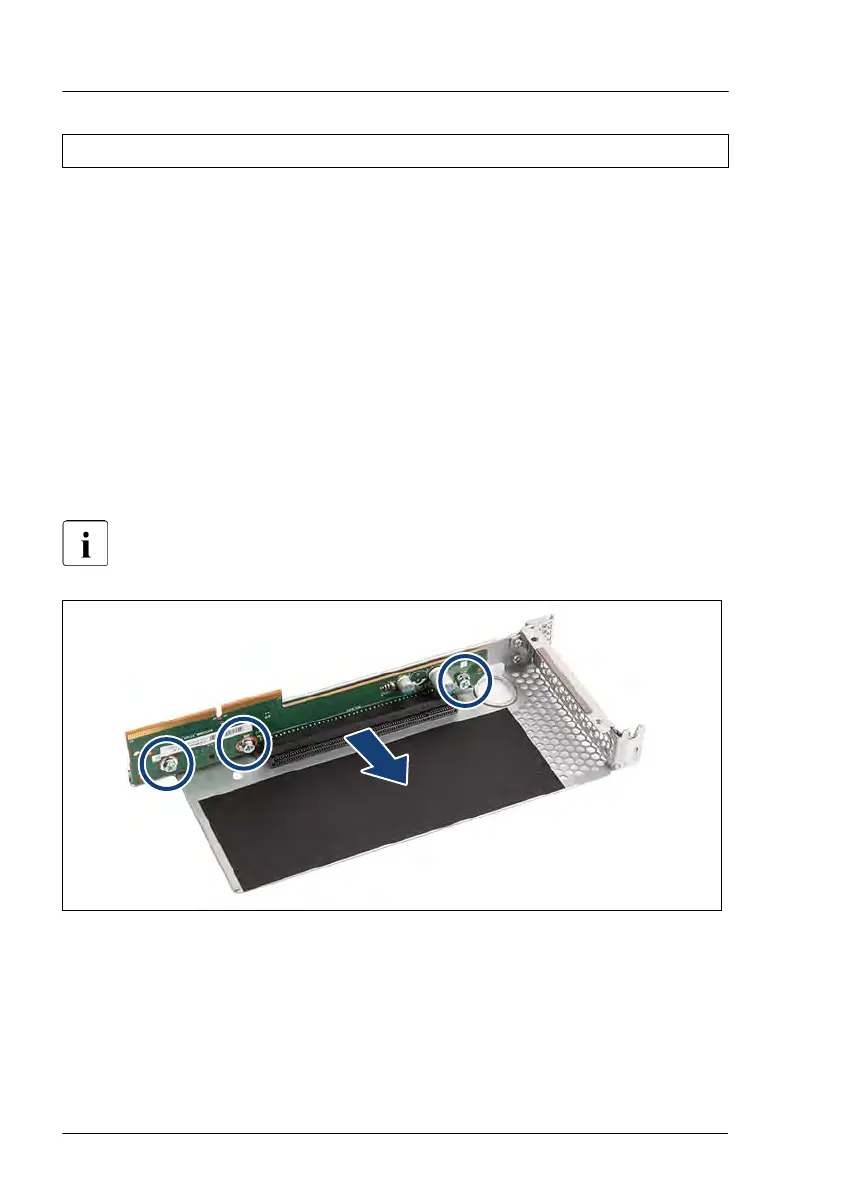

Figure 167: Removing the riser card
▶
Remove the three screws (see circles).
▶
Remove the riser card.
Expansion cards and backup units
248 Upgrade and Maintenance Manual RX2530 M6
