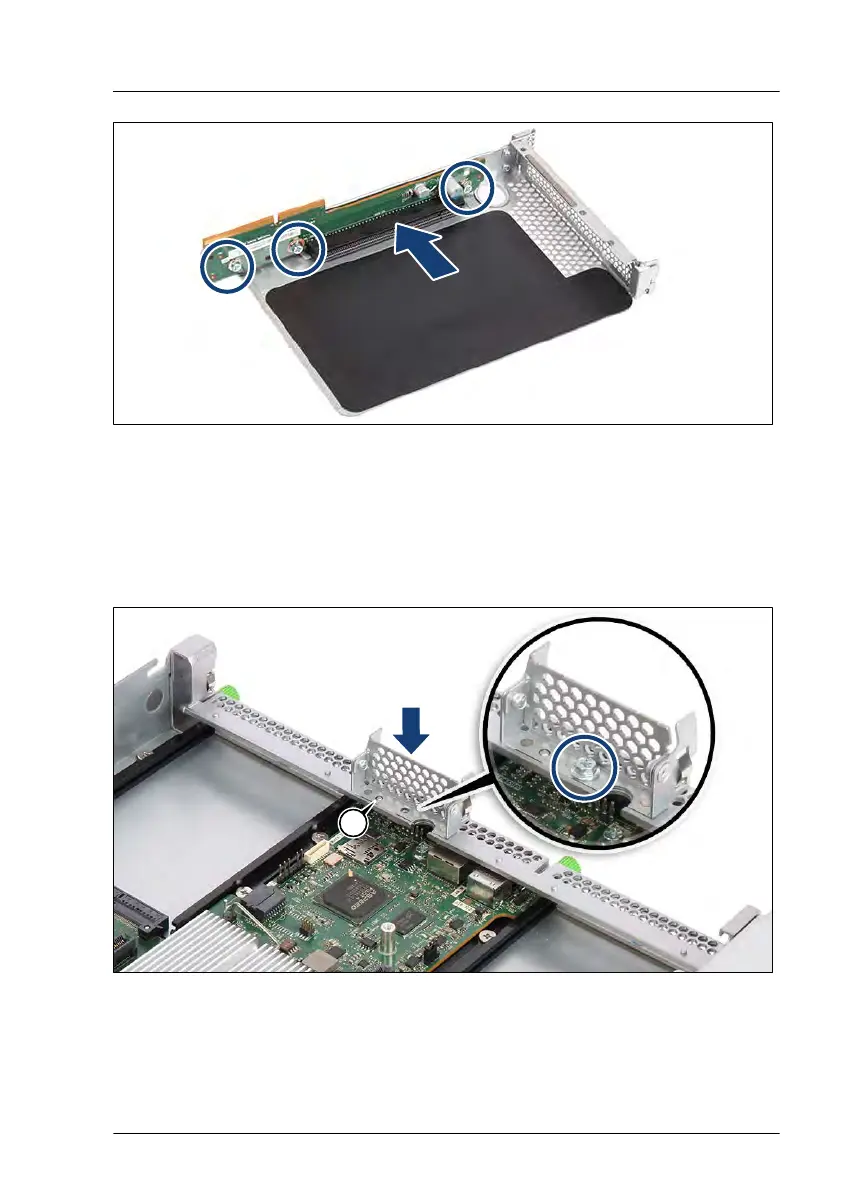

Figure 168: Installing the riser card
▶
Insert the riser card.
▶
Fasten the riser card with three screws (see circles).
Installing the full height riser module
Figure 169: Installing the slot bracket
▶
Position the slot bracket as shown. Notice the guide pin (A).
▶
Fasten the slot bracket with the screw (see circle).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 249
