Installing the FBU

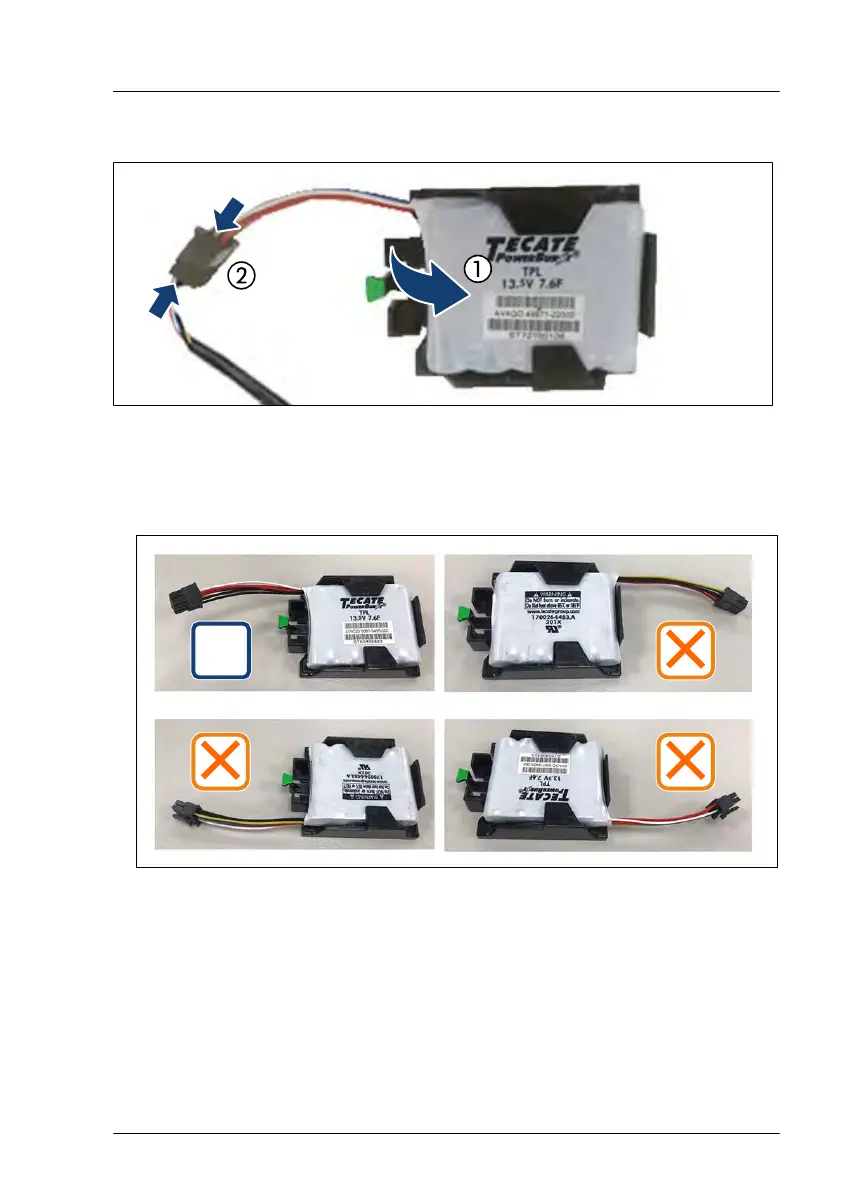

Figure 174: Installing the FBU in the holder
▶
At a slight angle, fit the FBU under both retaining brackets of the holder (1).
Notice the right position of the FBU cable:
▶
Push in the FBU until it locks in place.
▶
Connect the FBU adapter cable to the FBU cable (2).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 253
