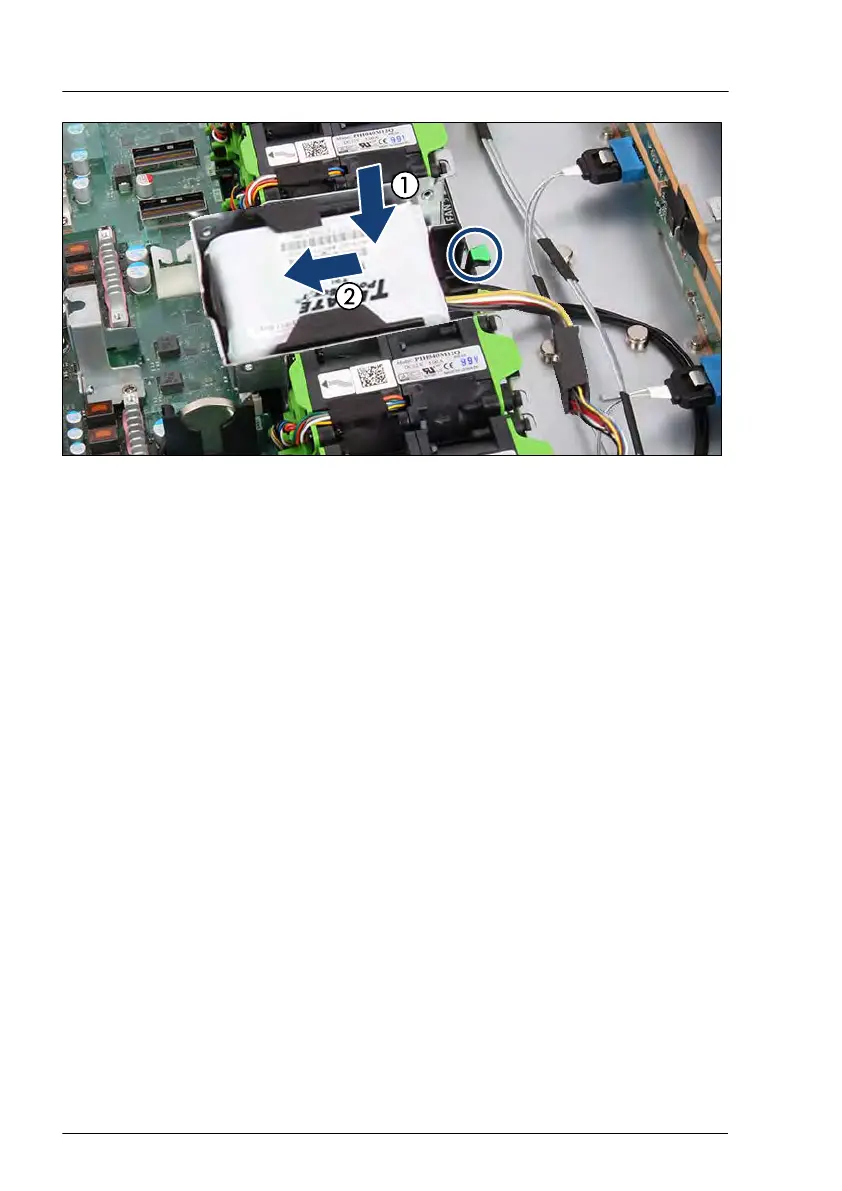

Figure 175: Installing the FBU with the holder
▶
Insert the holder into the chassis so that the three bolts rest in the wide ends
of the keyhole slots on the holder (1).
▶
Slide the holder in direction of the arrow (2).
The bolts will lock in the narrow ends of the keyhole slots on the holder.
▶
Ensure that the locking handle on the holder properly snaps in place (see
circle).
▶
Install the RAID controller, see "Installing an expansion card" on page
219.
Expansion cards and backup units
254 Upgrade and Maintenance Manual RX2530 M6
