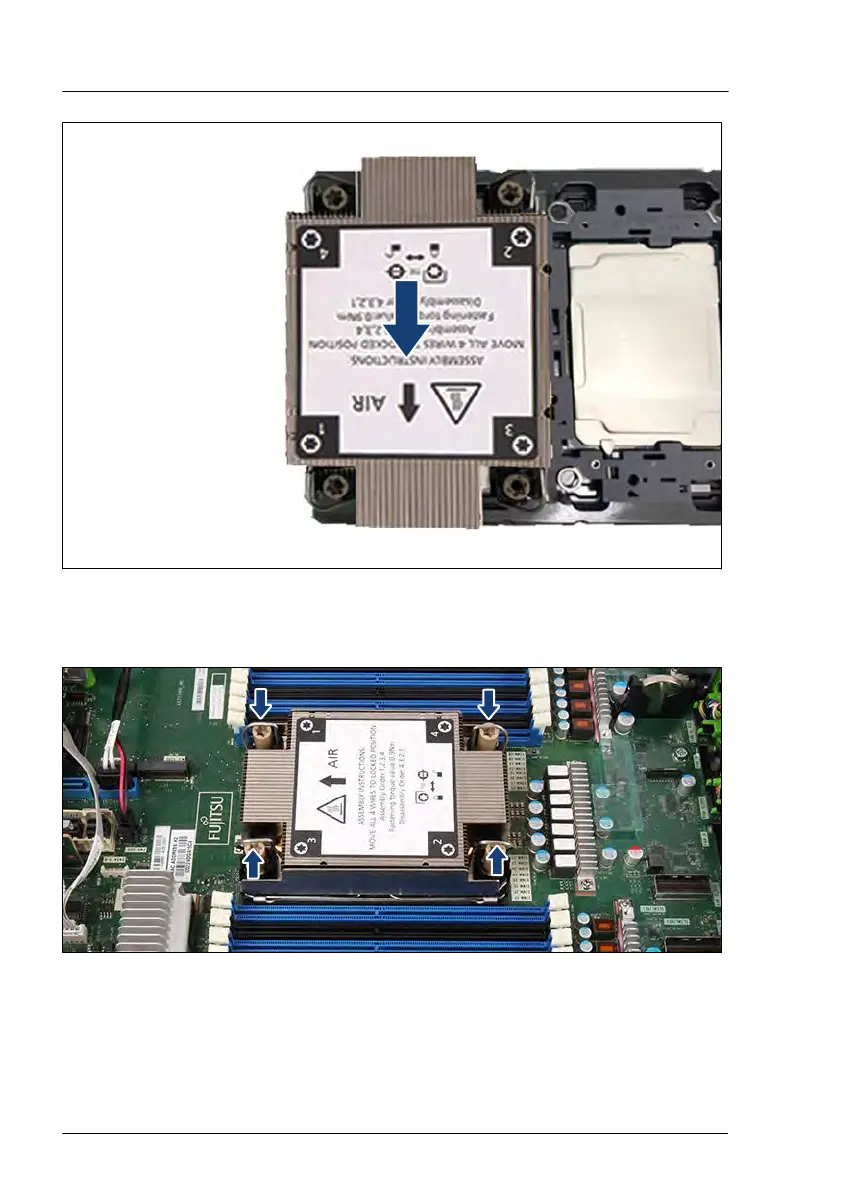

Figure 195: Installing the heat sink onto the CPU frame

▶

Place the heat sink onto the CPU frame.

Figure 196: Installing the heat sink (A)

Processor (CPU)

286 Upgrade and Maintenance Manual RX2530 M6
