Fujitsu PRIMERGY RX2530 M6

Installing the heat sink

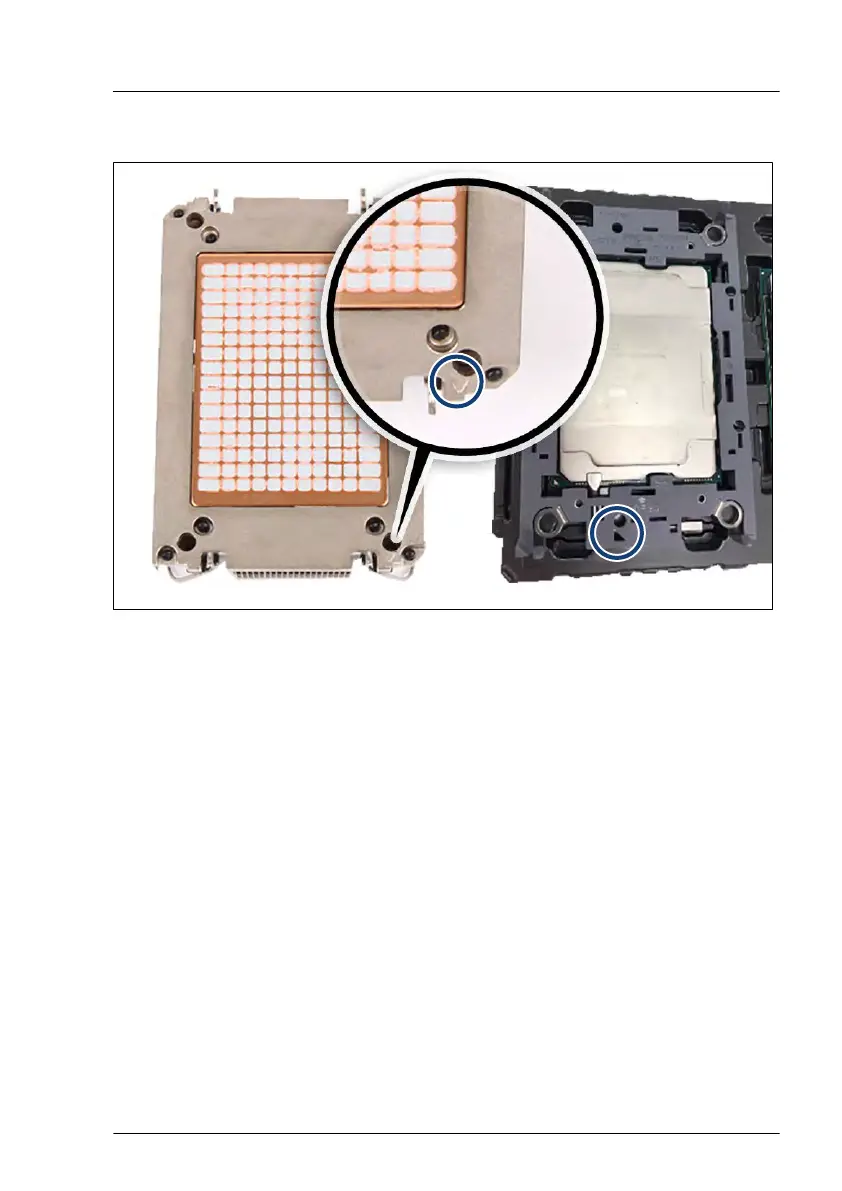

Figure 194: Marks on heat sink and CPU frame
▶
If applicable, remove the protective cover from the heat sink.
▶
If using a heat sink again, clean residual thermal paste from the heat sink
surface using a lint-free cloth.
▶
Ensure that the triangle marks on the heat sink and on CPU frame are on
the same edge (see circles).
Processor (CPU)
RX2530 M6 Upgrade and Maintenance Manual 285
