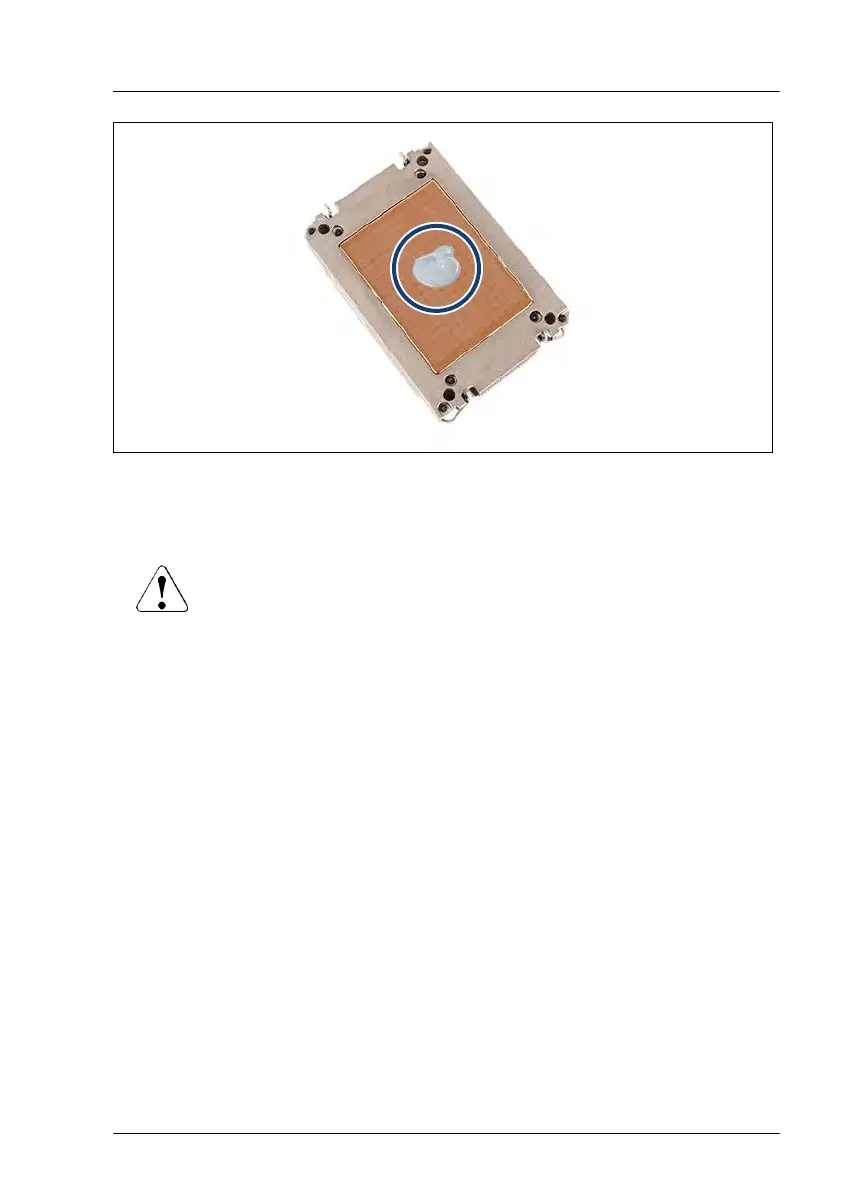

Figure 204: Applying the thermal paste
▶
Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the heat sink lower surface as shown.
CAUTION
▶
Do not mix different types of thermal paste.
Installing the CPU and heat sink
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
Install the CPU, see "Installing the CPU" on page
283.
▶
Install the heat sink, see "Installing the heat sink" on page
285.
Concluding steps
▶
"Installing the air duct" on page 74.
▶
"Reassembling" on page 57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
Processor (CPU)
RX2530 M6 Upgrade and Maintenance Manual 295
