Fujitsu PRIMERGY RX2530 M6

▶
Remove the cable clip (see circle).
▶
Remove the protective caps.

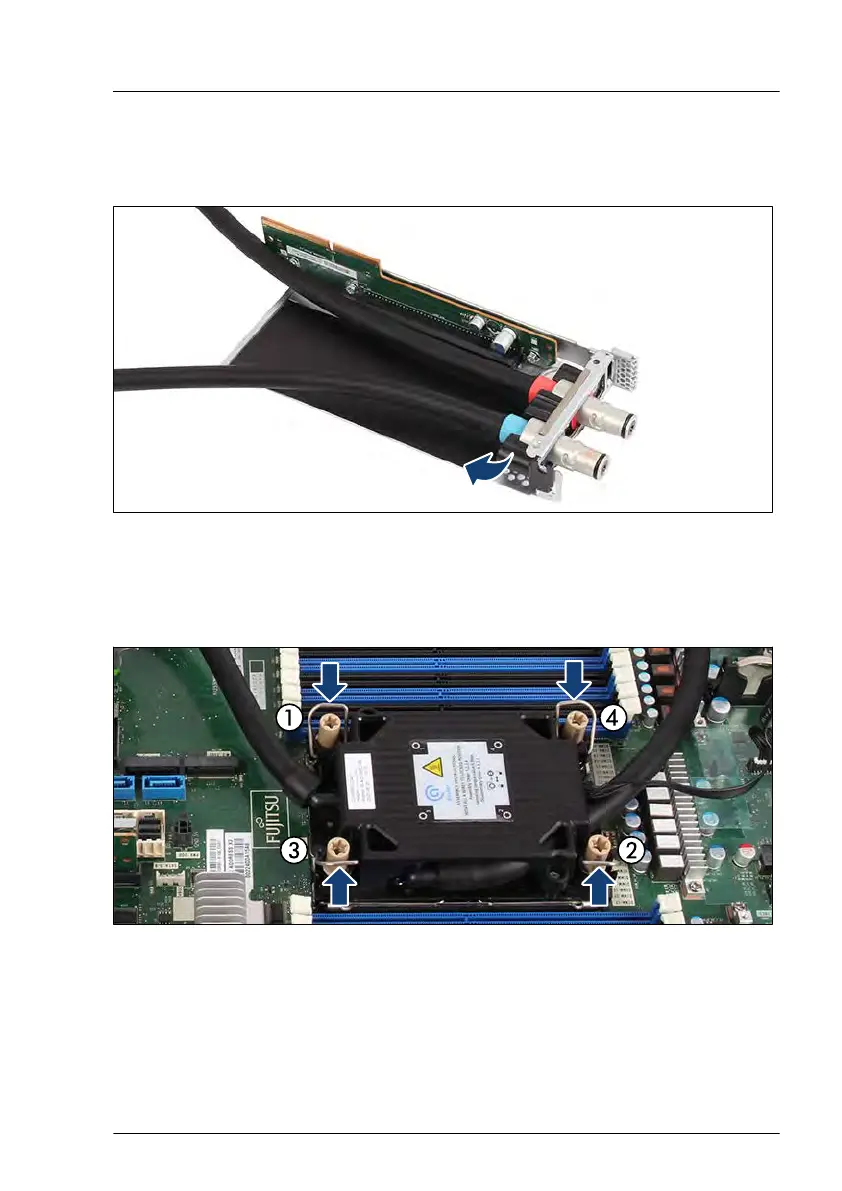

Figure 208: Removing the slot bracket with tubes
▶
Remove the slot bracket with the tubes.
▶
Disconnect the two control cables from the system board, see Figure 205.
Figure 209: Removing the LC heat sink (A)
Liquid cooling (LC)
RX2530 M6 Upgrade and Maintenance Manual 301
