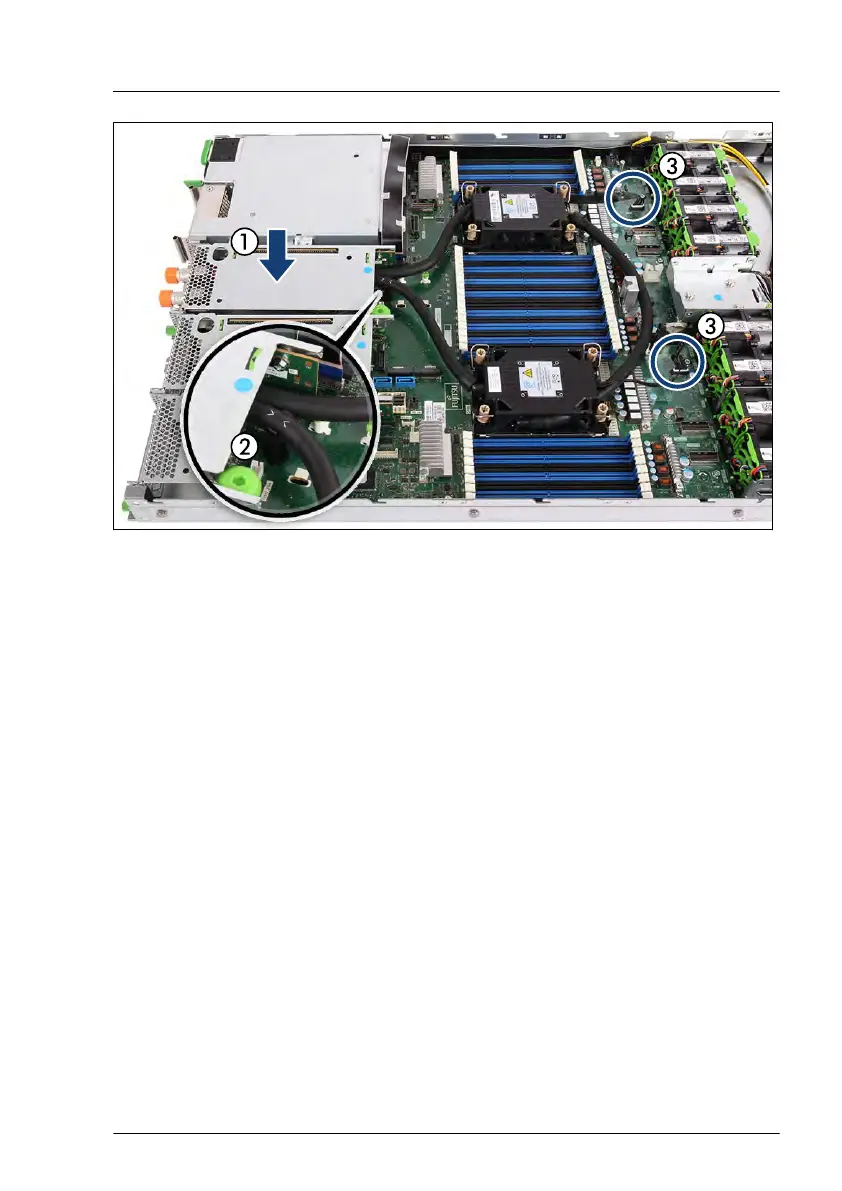

Figure 220: Installing the riser module 3 with tubes
▶
Install the riser module 3 (1), see "Installing a riser module" on page 69.
▶
Install the distance holder (2). The right position is marked on the tube (see
close-up).
▶
Connect the two control cables to the system board (3), see "Connectors
for the LC, slots for CPUs and DIMMs" on page 298.
Concluding steps
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
Liquid cooling (LC)
RX2530 M6 Upgrade and Maintenance Manual 311
