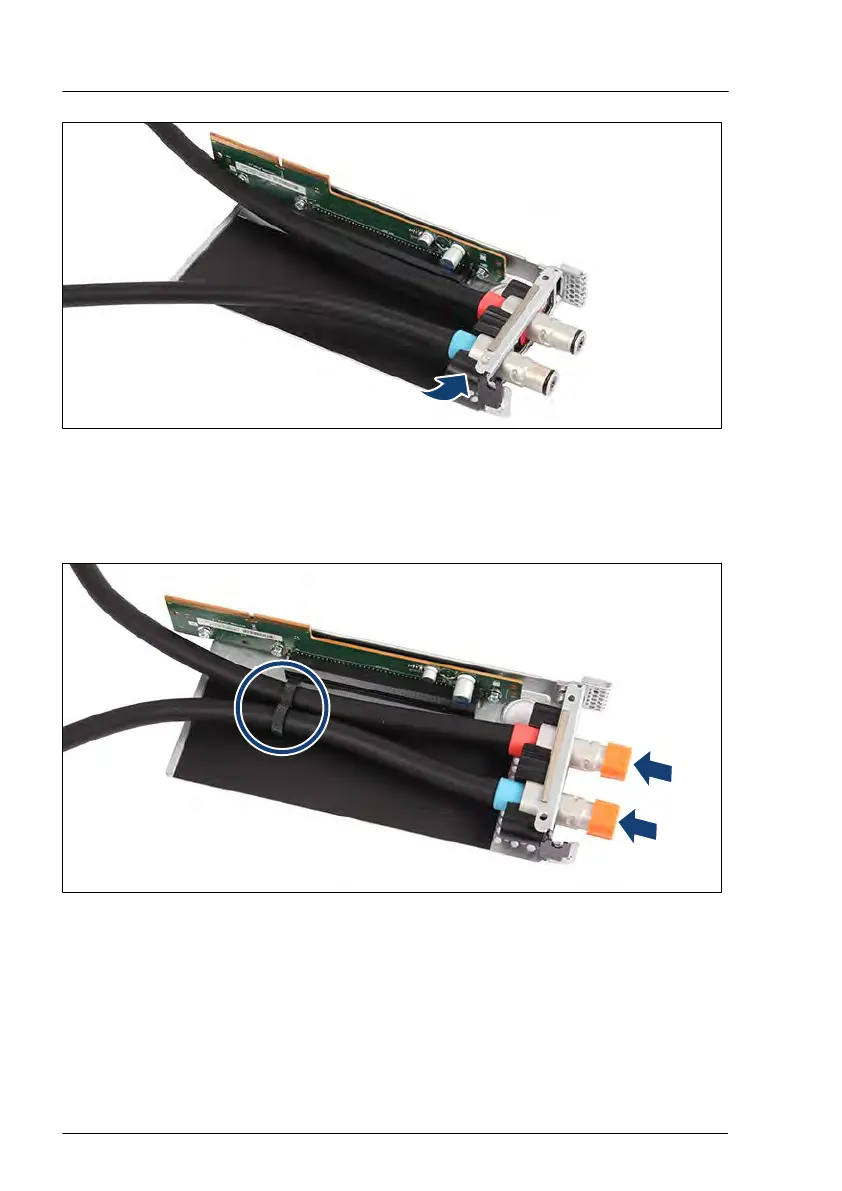

Figure 218: Installing the slot bracket with tubes
▶
If applicable, remove the protective caps from the tube outlets.
▶
Install the quick connector block in riser module 3.
Figure 219: Installing the clamp
▶
Install the protective caps on the tube outlets (see arrows).
▶
Fix the tubes with the cable clip (see circle).
Liquid cooling (LC)
