Fujitsu PRIMERGY RX2530 M6

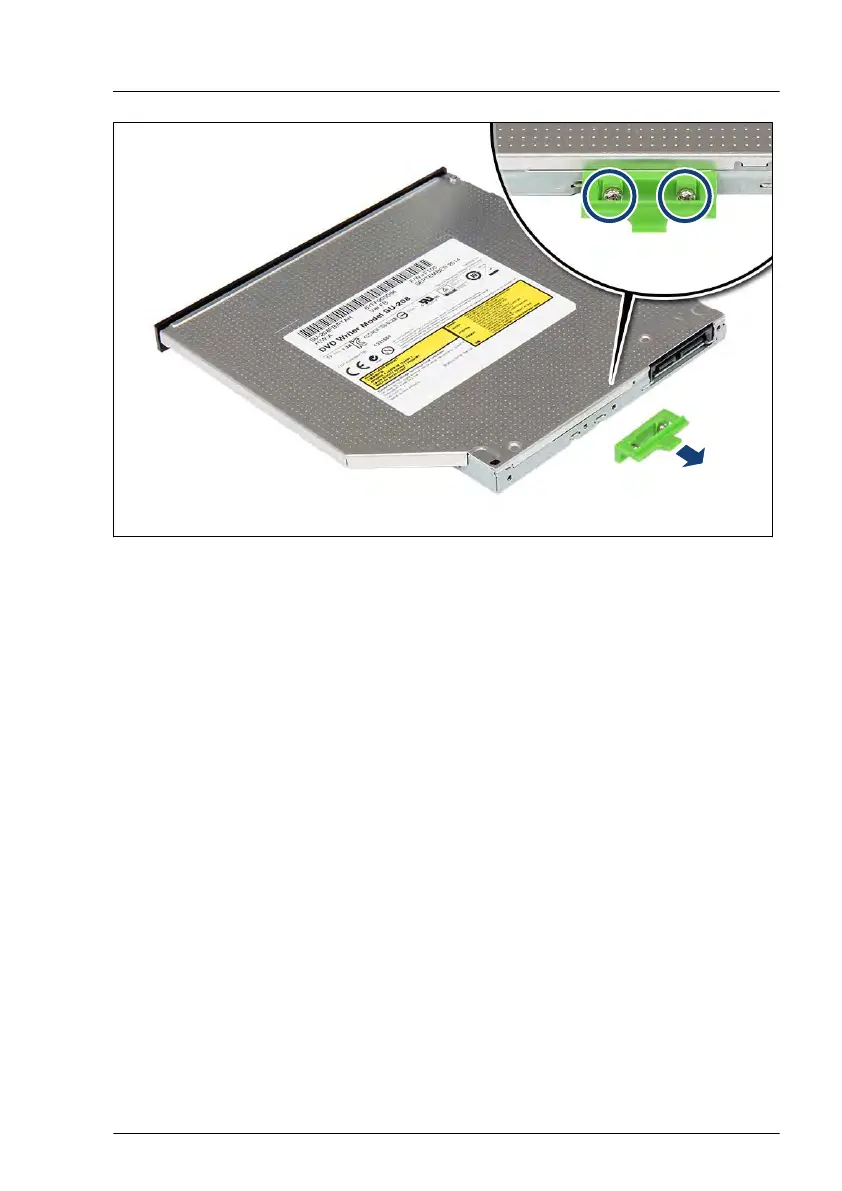

Figure 232: Removing the ODD latch from the ODD
▶
Remove the two screws (see circles).
▶
Remove the ODD latch.
▶
If no new ODD will be installed:
▶
Fasten the ODD latch with two screws to the chassis (see Figure 225).
Accessible drives
RX2530 M6 Upgrade and Maintenance Manual 321
