Preparing the serial interface

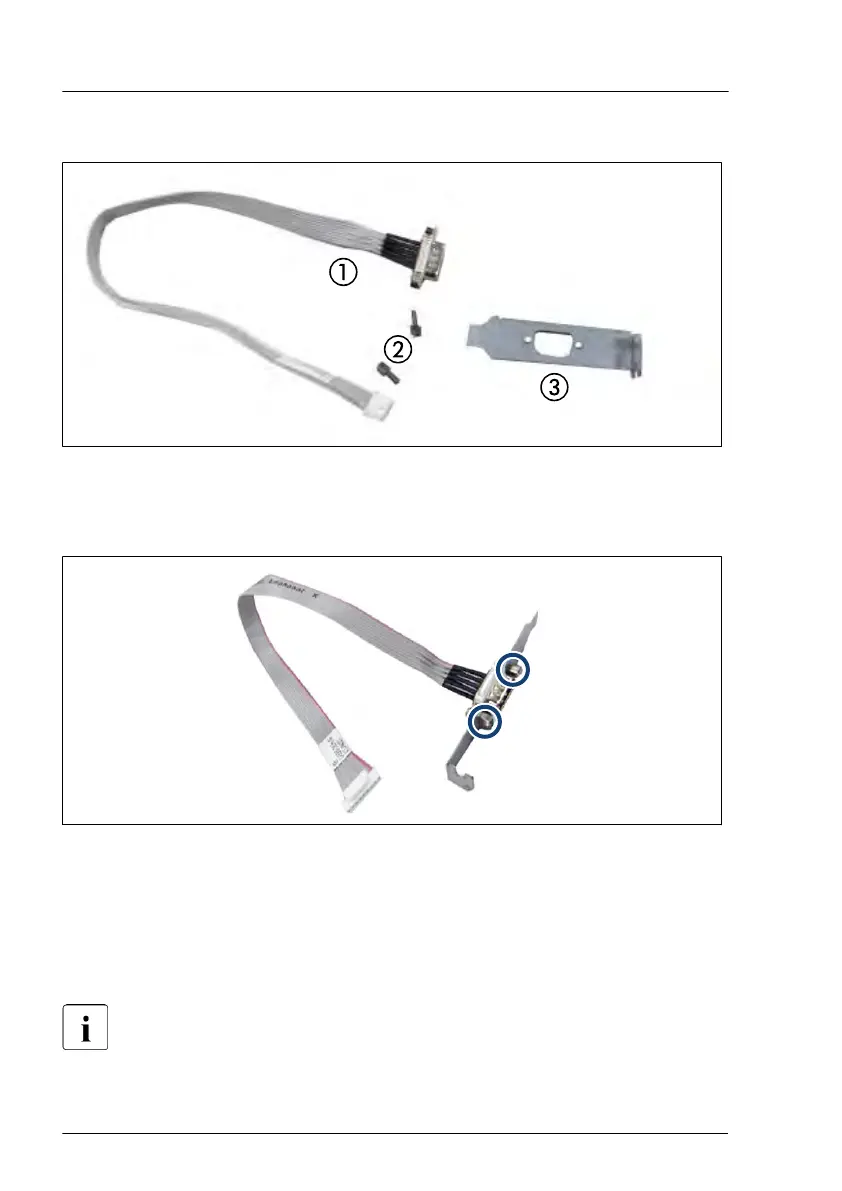

Figure 245: Serial interface kit
1 Serial interface cable
2 Screws
3 Slot bracket
Figure 246: Preparing the serial interface
▶
Fasten the connector of the serial interface cable with the two screws (part
of kit) to the slot bracket.
Removing the slot cover
The serial interface can be installed in riser module 1, 2 or 3.
Serial interface
