Remove the corresponding riser module, see "Removing a riser module" on
page 69.
▶
Remove the corresponding slot cover, see "Removing the slot cover" on
page 220
.
Installing the serial interface

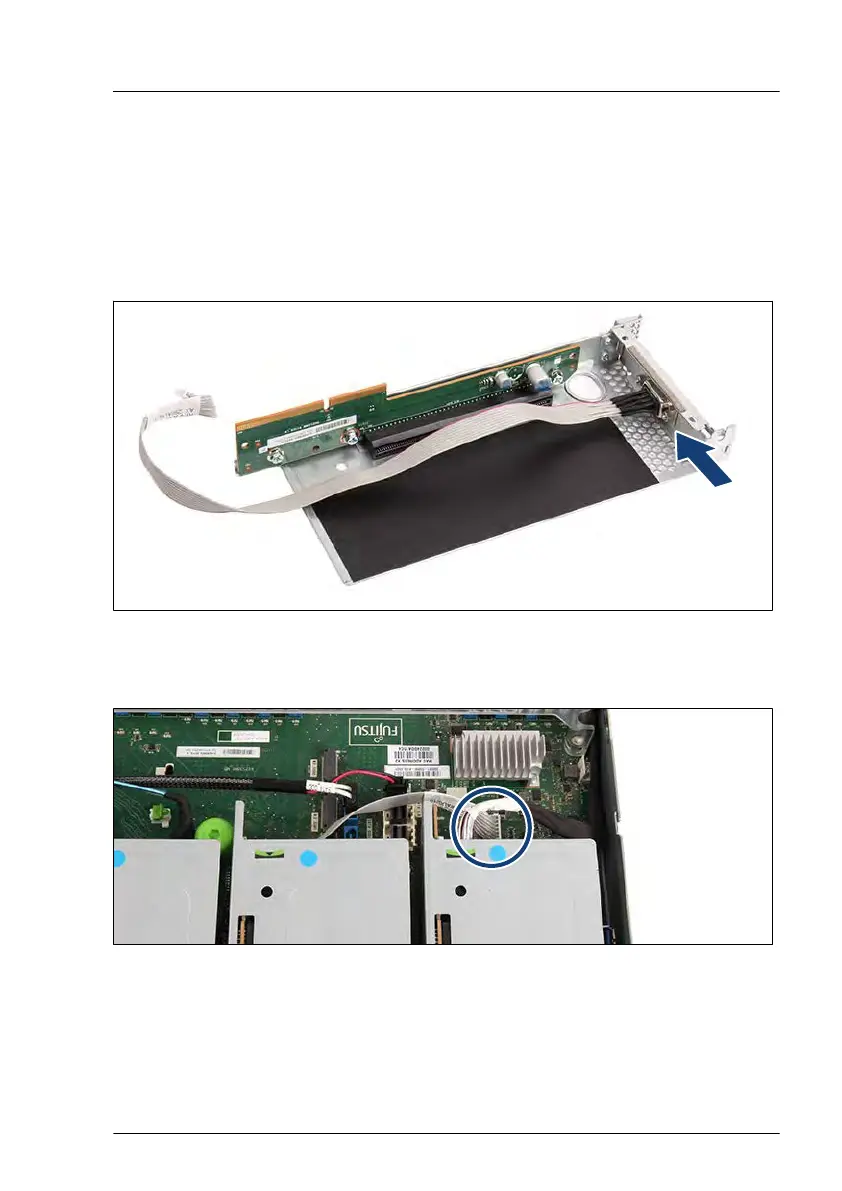

Figure 247: Installing the serial interface - example riser module 3
▶
Install the serial interface in the riser module.
Figure 248: Connecting the serial interface cable
▶
Connect the serial interface cable to the system board connector "SERIAL".
Serial interface
RX2530 M6 Upgrade and Maintenance Manual 339
