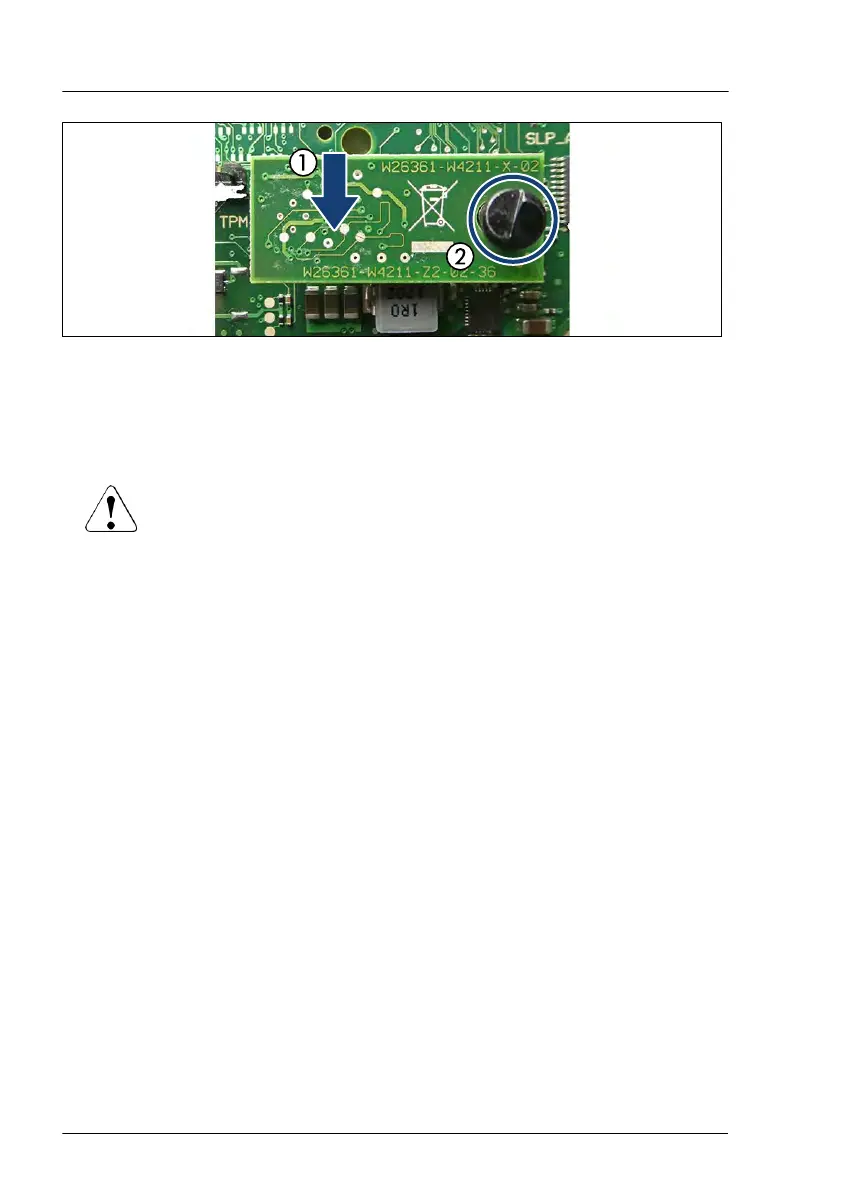

Figure 258: Installing the TPM
▶
Connect the TPM to the system board (1).
▶
Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Stop it by extent where the head of the screw lightly touches the
TPM. Torque: 0.6 Nm (not used in Japan).
Concluding steps
▶
Install the riser module 3, see "Installing a riser module" on page
69.
▶
"Reassembling" on page
57
.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
▶
"Resuming BitLocker functionality" on page 93.
▶
Enable the TPM in the system board BIOS, see "Enabling the TPM in the
system board BIOS".
Enabling the TPM in the system board BIOS
▶
Switch on or restart your server.
▶
As soon as the startup screen appears, press the [F2] function key to enter
the BIOS setup menu.
System board and components
352 Upgrade and Maintenance Manual RX2530 M6
