Fujitsu PRIMERGY RX2530 M6

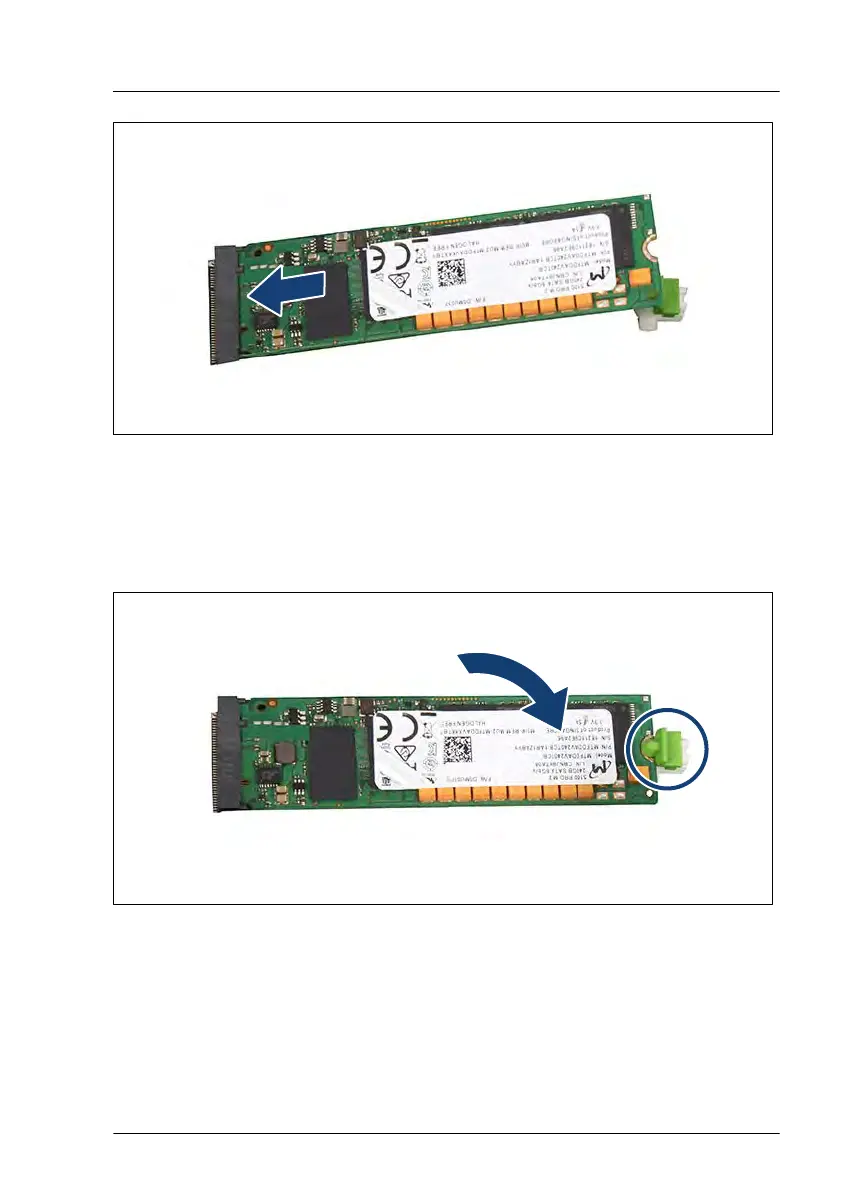

Figure 265: Installing the M.2 SSD (A)
▶
With the label facing up, insert the M.2 SSD into the M.2 slot at a slight
angle.
▶
Align the key pin with the M.2 slot.
Figure 266: Installing the M.2 SSD (B)
▶
Push down the M.2 SSD until the M.2 SDD latch locks in (see circle).
System board and components
RX2530 M6 Upgrade and Maintenance Manual 367
