Replacing the Dual microSD 64GB Enterprise
▶
Remove the defective Dual microSD 64GB Enterprise, see "Removing the
Dual microSD 64GB Enterprise" on page 377.
▶
Remove both microSD cards from the defective Dual microSD 64GB
Enterprise.
Proceed as described in the following:

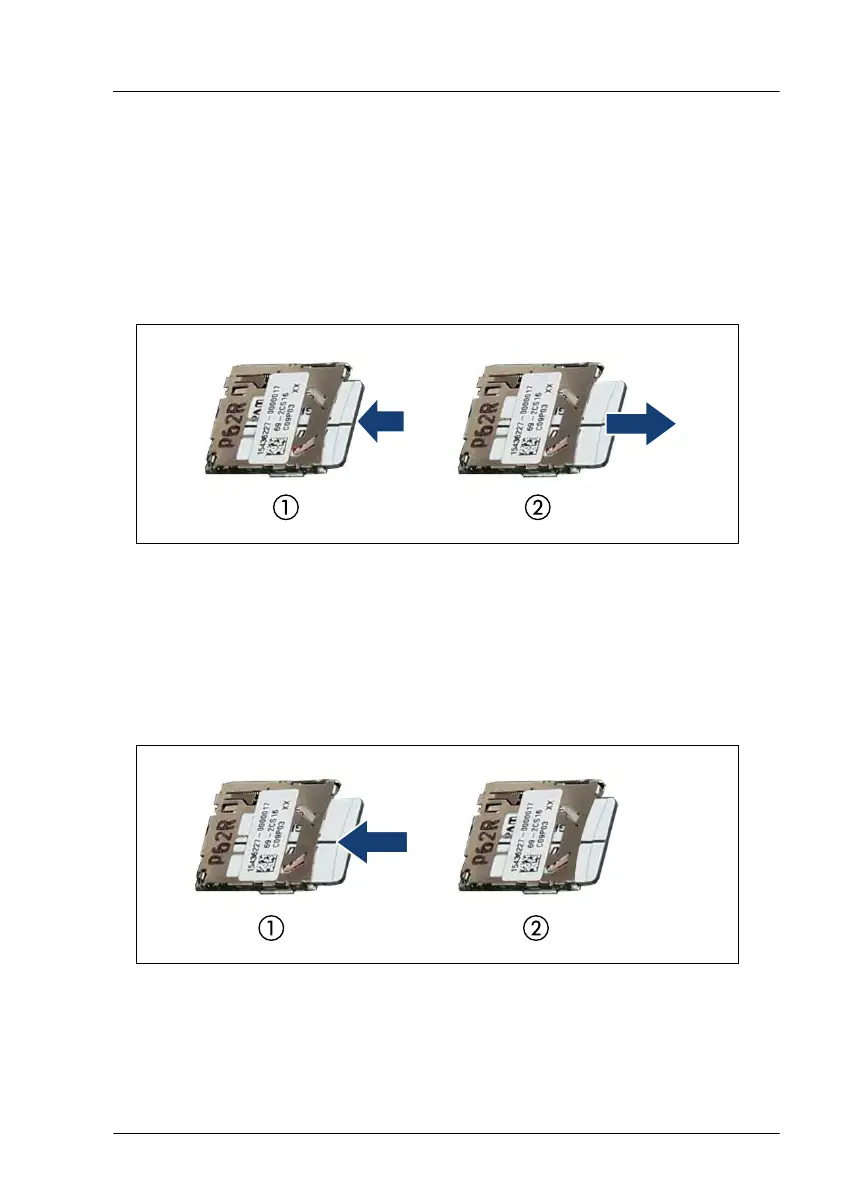

Figure 276: Removing the microSD card
▶
To eject the microSD card, gently push it in and then let go (1).
▶
Pull the microSD card straight out of its slot (2).
▶
Install both microSD cards on the new Dual microSD 64GB Enterprise.
Proceed as described in the following:
Figure 277: Installing the microSD card
▶
With the label facing up, insert the microSD card into the microSD slot on
the controller (1) until it locks in place (2).
System board and components
RX2530 M6 Upgrade and Maintenance Manual 379
