Remove the riser module for PCIe slot 10 and PCIe slot 11, see "Removing
a riser module" on page
63.
▶
"Removing the top system board carrier" on page 73.
▶
"Removing the air duct 2" on page 69.
▶
Disconnect the front panel cable from the bottom system board, see
"Removing the COP" on page 317.
▶
Remove the two hot-plug PSUs, see "Removing a hot-plug PSU" on
page 125.
Removing the defective power distribution board

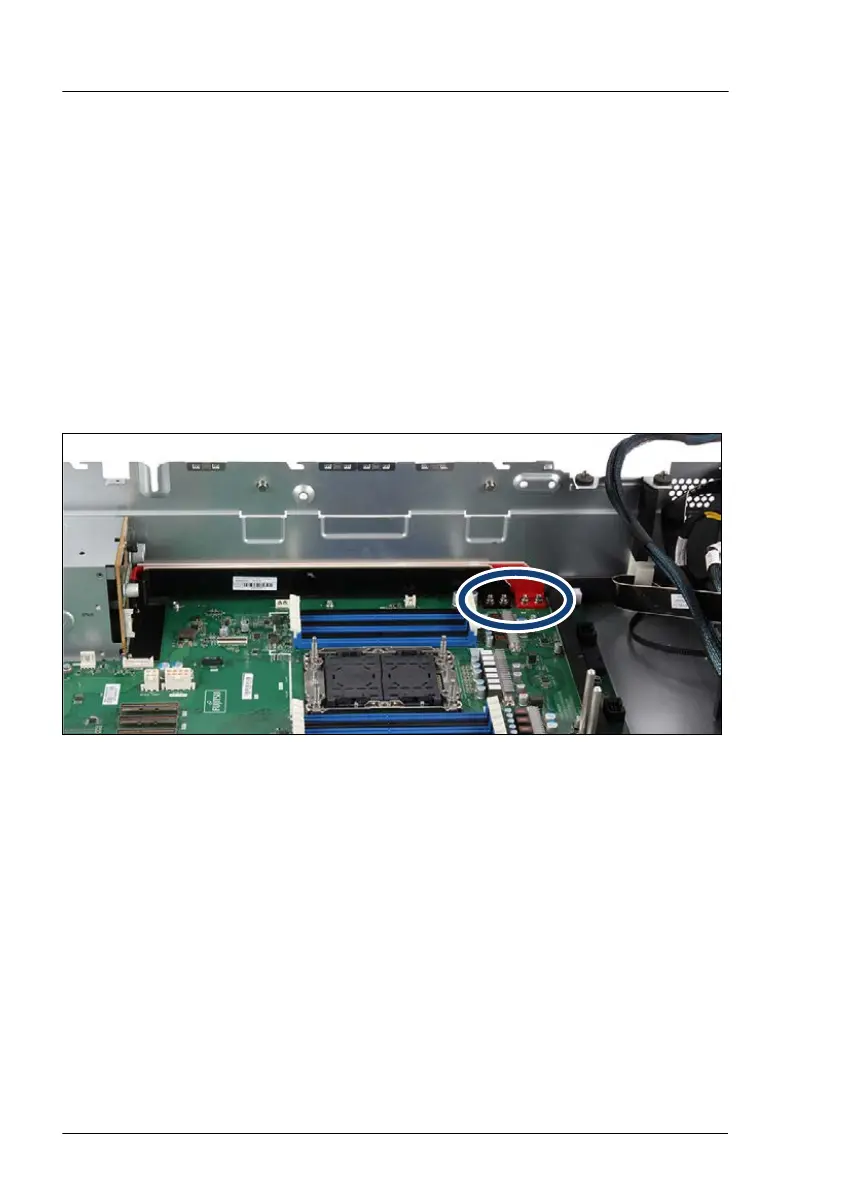

Figure 46: Releasing the bus-bar
▶
Remove the four screws of the bus-bar (see circle).
Power supply unit (PSU)
130 Upgrade and Maintenance Manual RX4770 M6
