Installing the new power distribution board

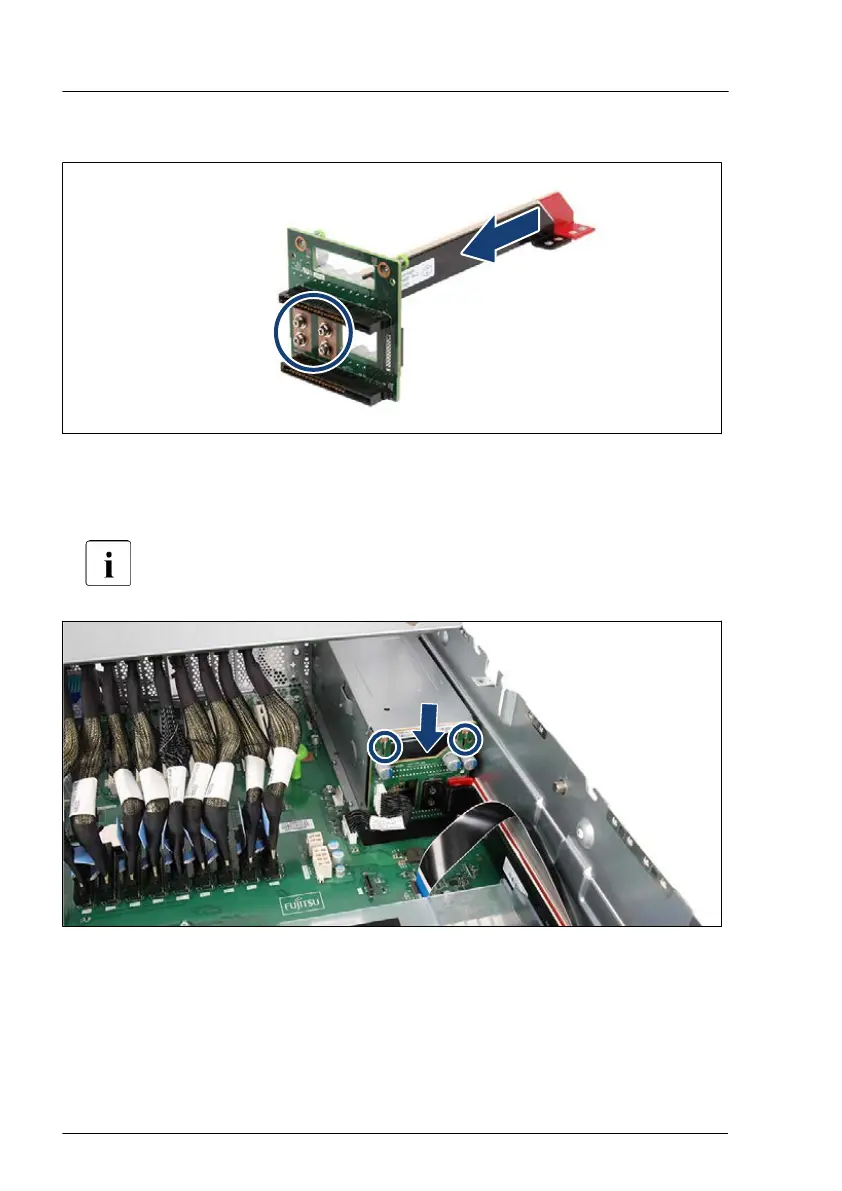

Figure 49: Installing the bus-bar
â–¶
Install the bus-bar on the new power distribution board with four screws (see
circle).
Position the red power rail to the outside and the black power rail to
the inside to fasten it in the right position.
Figure 50: Installing the power distribution board (A)
â–¶
Place the new power distribution board with the bus-bar as shown.
Algin the power distribution board on the guide pins on the PSU cage (see
circles) for the correct position.
Power supply unit (PSU)
132 Upgrade and Maintenance Manual RX4770 M6
