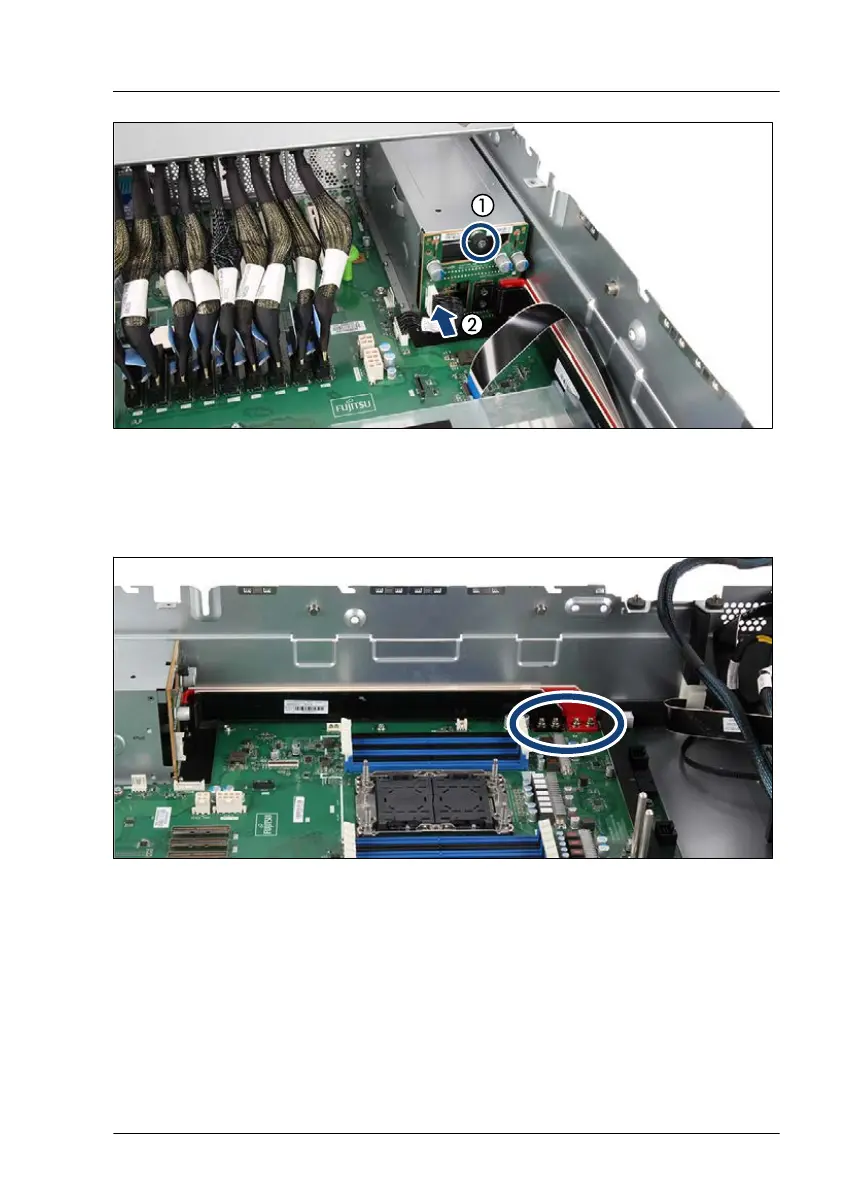

Figure 51: Installing the power distribution board (B)
▶
Fasten the captive screw on the power distribution board (1).
▶
Connect the signal cable to the power distribution board (2).
Figure 52: Fastening the screws on the bus-bar
▶
Fasten the four screws on the bus-bar to connect the power distribution
board to the bottom system board (see circle).
Power supply unit (PSU)
RX4770 M6 Upgrade and Maintenance Manual 133
