Installing the new 8x 2.5-inch HDD backplane

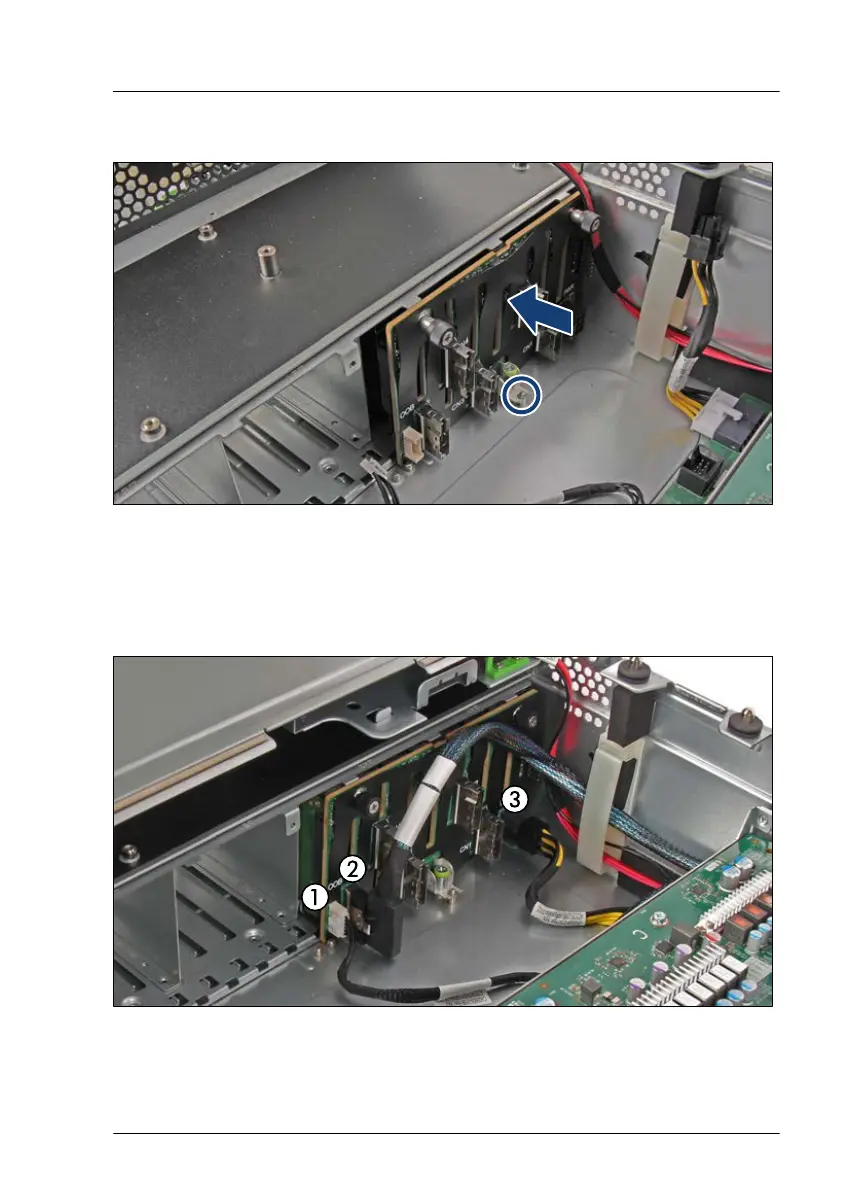

Figure 63: Installing the 8x 2.5-inch HDD backplane
▶
Insert the HDD backplane in a slight angle and position it on the pin on the
bottom of the chassis (see circle).
▶
Fasten the three knurled screws.
Figure 64: Connecting cables to the 8x 2.5-inch HDD backplane
▶
Connect the following cables (example with one SAS cable):
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M6 Upgrade and Maintenance Manual 151
