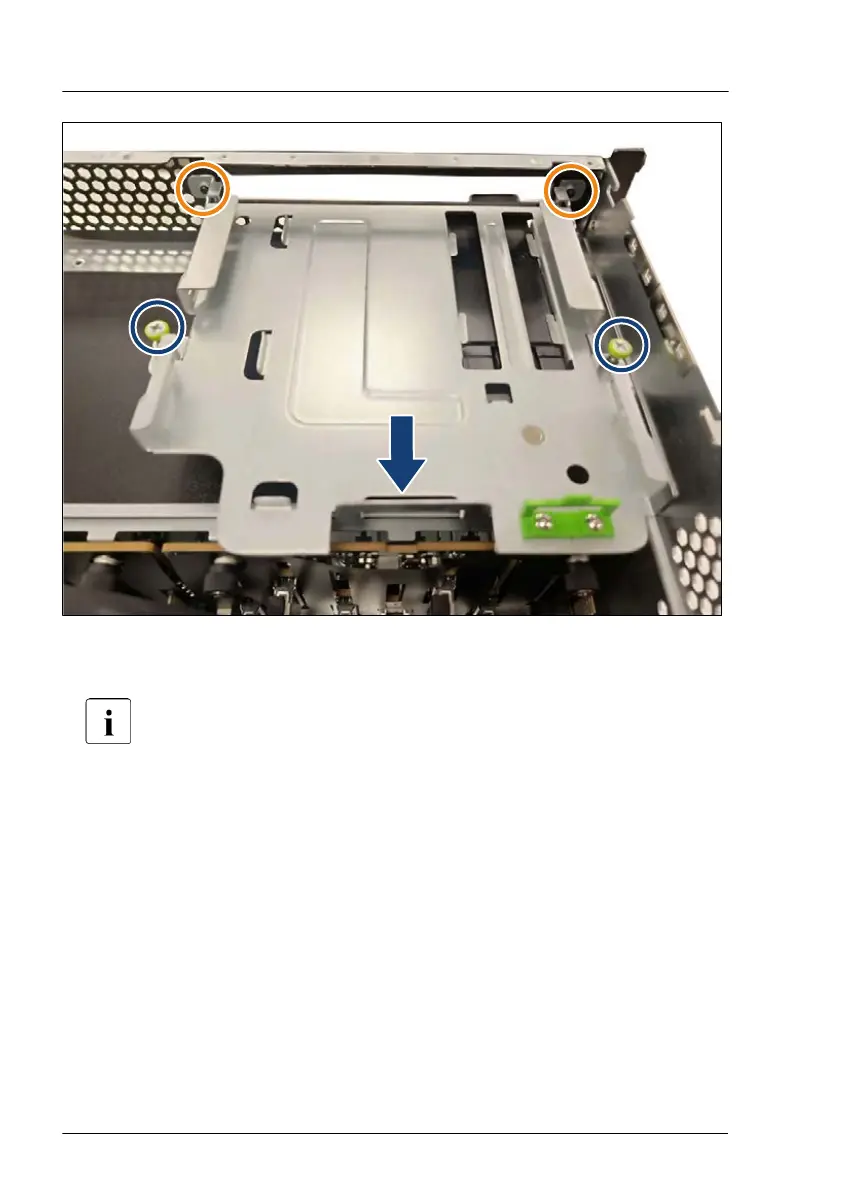

Figure 65: Removing the ODD cage
▶
Loosen the knurled screws (see blue circles).
Notice the guiding points (see orange circles).
▶
Remove the ODD cage.
Removing the defective 24x 2.5-inch HDD backplane and the SAS
expander switch board
▶
If applicable, remove the front VGA, see "Replacing the front VGA" on
page 323.
▶
Disconnect all cables from the HDD backplane and the SAS expander
switch board.
Hard disk drive (HDD) / solid state disk (SSD)
154 Upgrade and Maintenance Manual RX4770 M6
