Removing the defective fan module

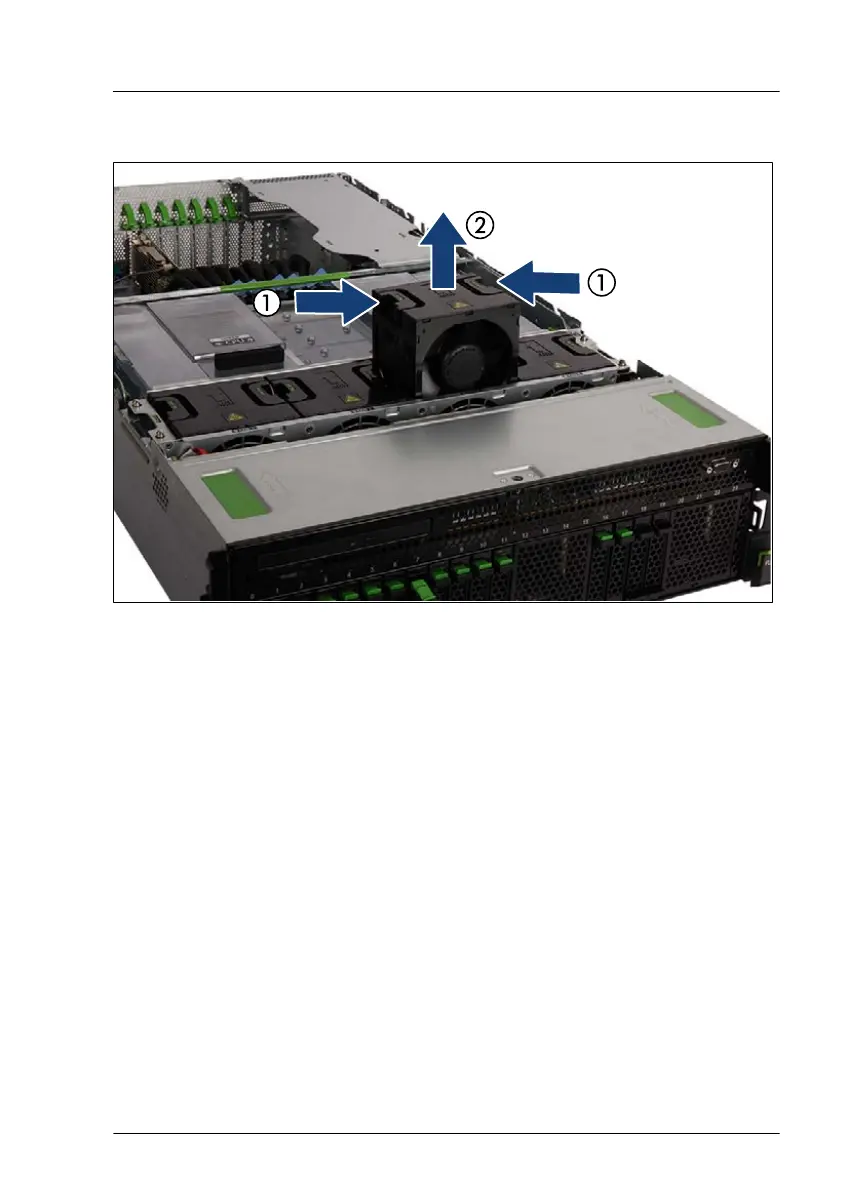

Figure 76: Removing the fan module
▶
Press the latches to release the locking mechanism (1).
▶
Pull up the fan module in the direction of the arrow (2).
