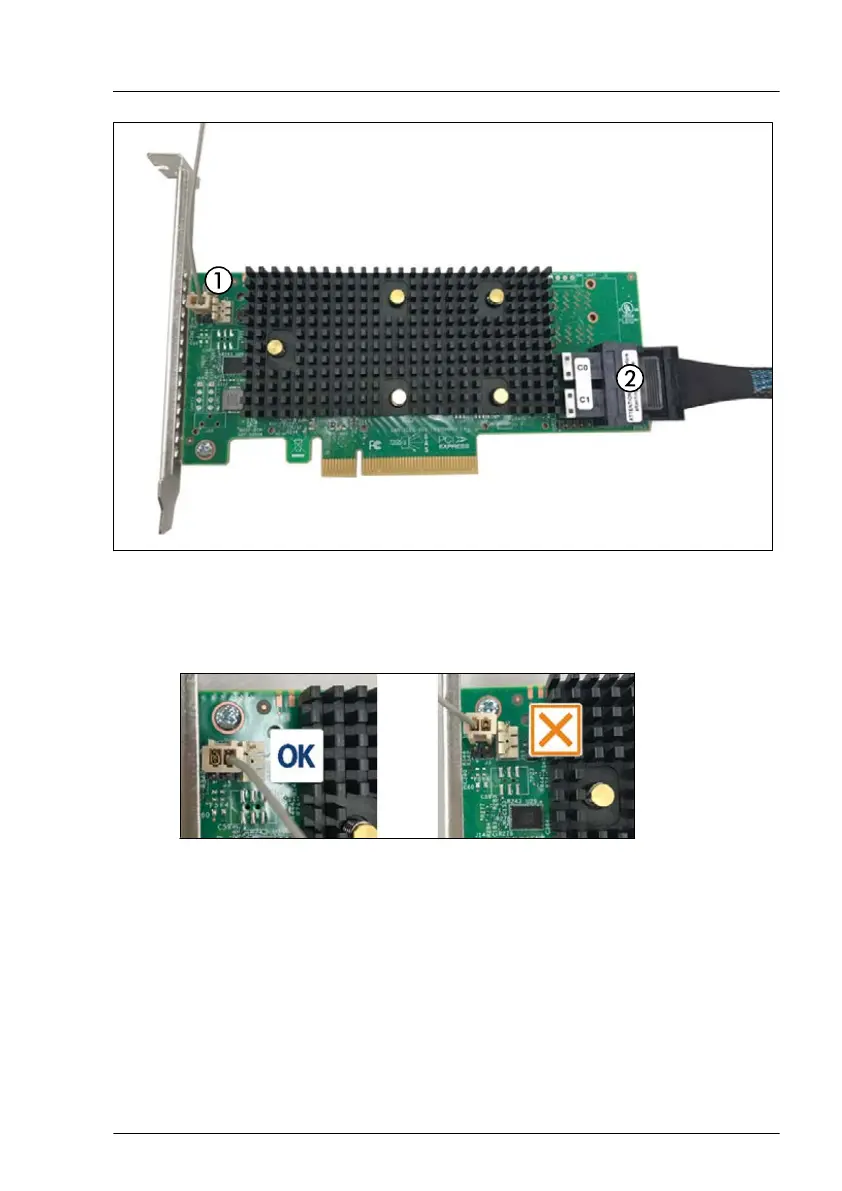

Figure 101: Connecting cables to the SAS CP500i RAID controller
▶
Connect the following cables to the RAID controller:
1 HDD LED cable
2 SAS cables
Example SAS EP520i RAID controller:
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 195
