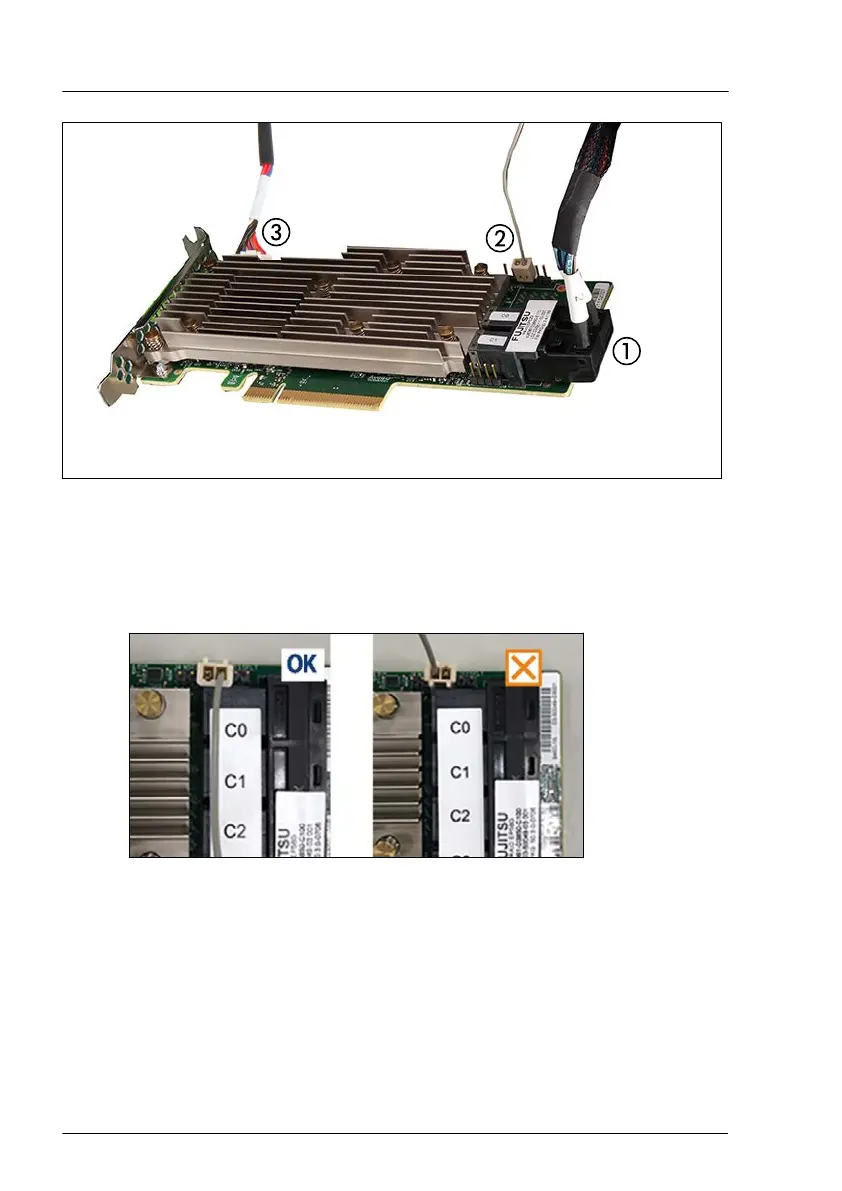

Figure 102: Connecting cables to the SAS EP520i RAID controller
â–¶
Connect the following cables to the RAID controller:
1 SAS cables
2 HDD LED cable
3 If applicable, FBU adapter cable
Expansion cards and backup units
196 Upgrade and Maintenance Manual RX4770 M6
