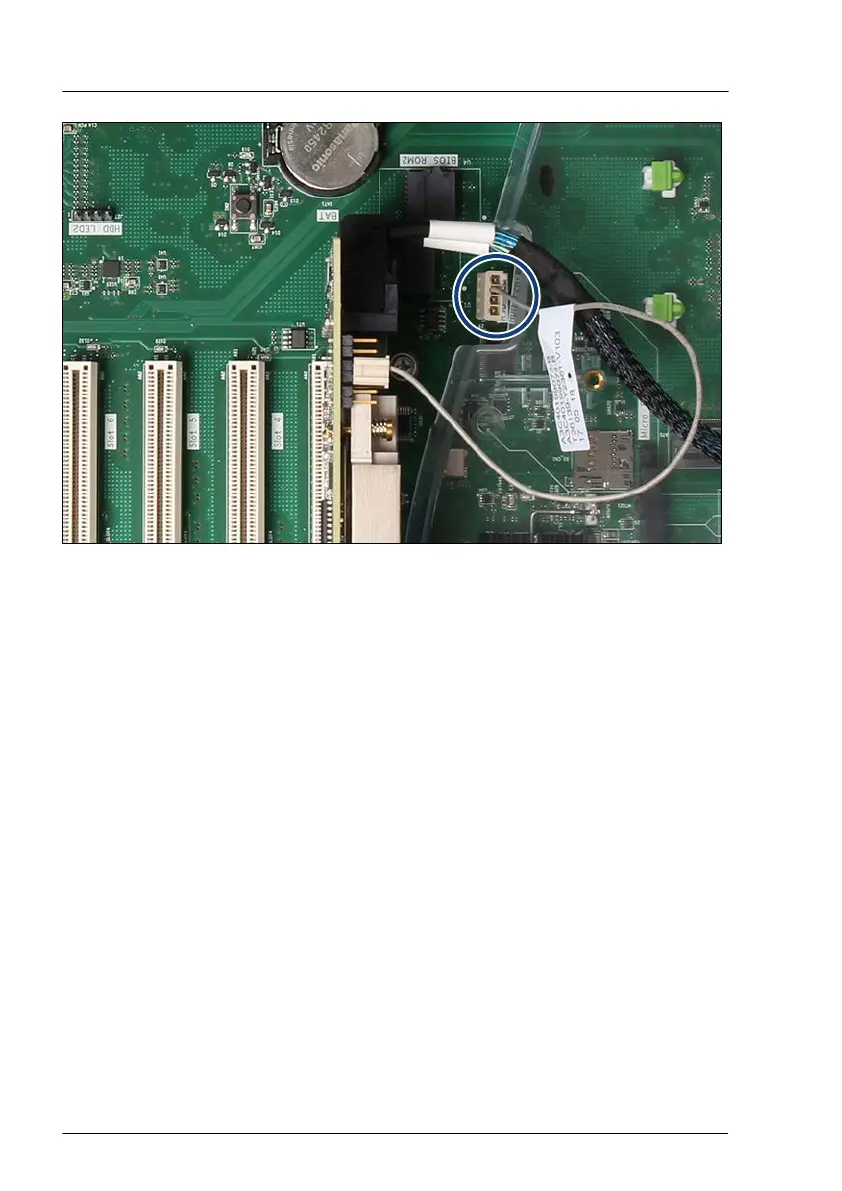

Figure 104: Connecting the HDD LED cable to the bottom system board
▶
Connect the HDD LED cable to the bottom system board (see circle).
Expansion cards and backup units
198 Upgrade and Maintenance Manual RX4770 M6
