Installing a GPU card (example NVDIA Tesla V100S)

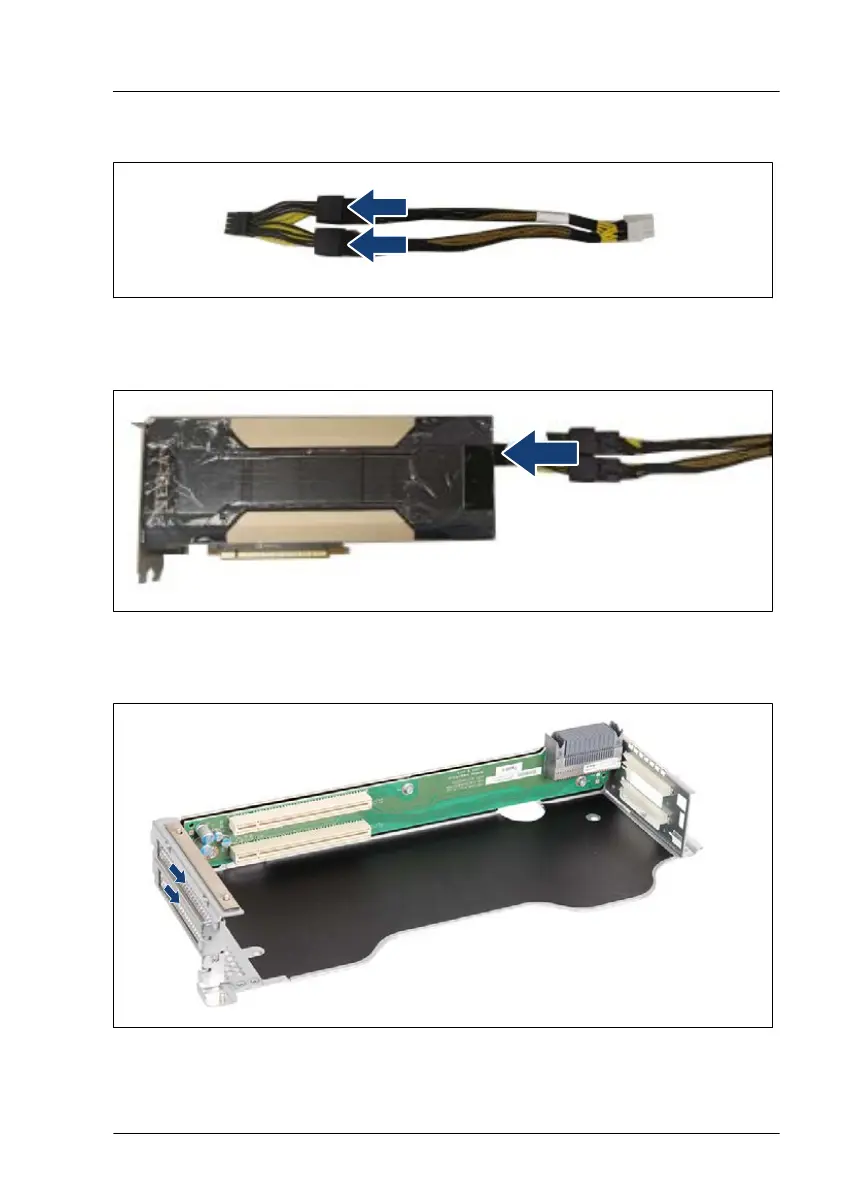

Figure 116: Connecting the cables
▶
Connect the GPU PWR cable and the V100S adapter cable.
Figure 117: Connecting the V100S adapter cable
▶
Connect the V100S adapter cable to the GPU.
Figure 118: Removing the slot cover - example riser module left
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 215
