Connect the GPU PWR cable to the bottom system board.
Notice the routing of the GPU PWR cable:
Installing a GPU card (example RTX4000/6000/8000)

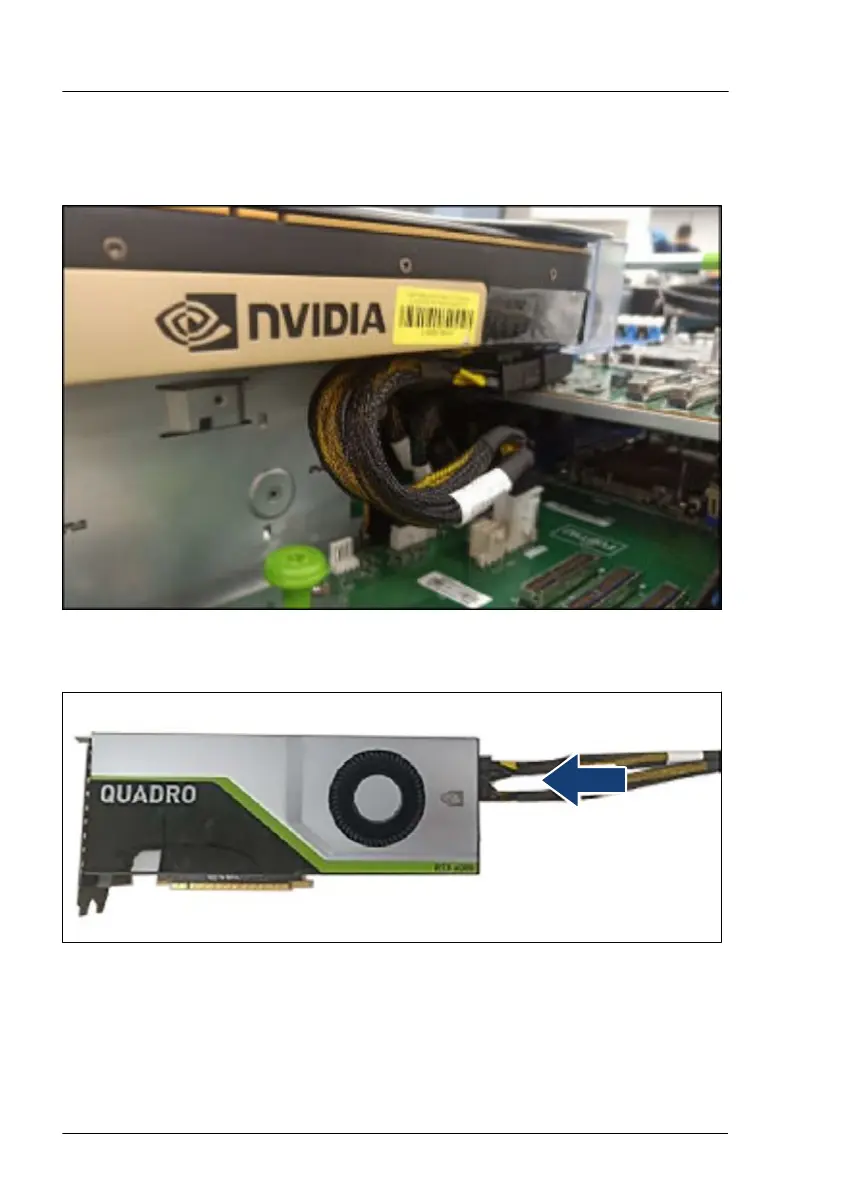

Figure 122: Connecting the GPU power cable
â–¶
Connect the power cable to the GPU.
Expansion cards and backup units
218
Upgrade and Maintenance Manual
RX4770 M6
217
219
