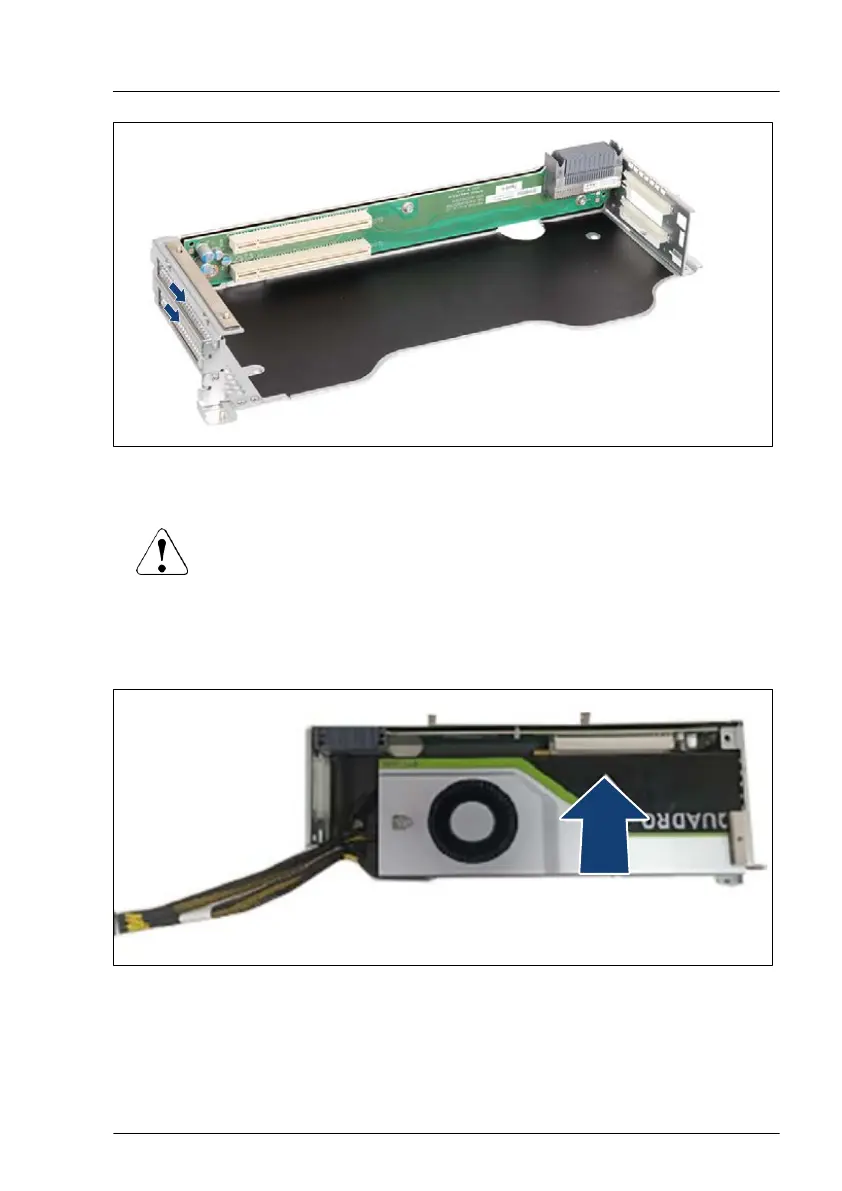

Figure 123: Removing the slot cover - example riser module left
â–¶
Remove the two slot covers.
CAUTION
â–¶
Keep the slot cover for future use.
â–¶
If the expansion card is removed and not replaced with a new
one, the slot cover must be reinstalled due to cooling, to comply
with applicable EMC regulations and to protect against fire.
Figure 124: Installing a GPU card in a riser module
â–¶
Install the GPU in the riser module.
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 219
