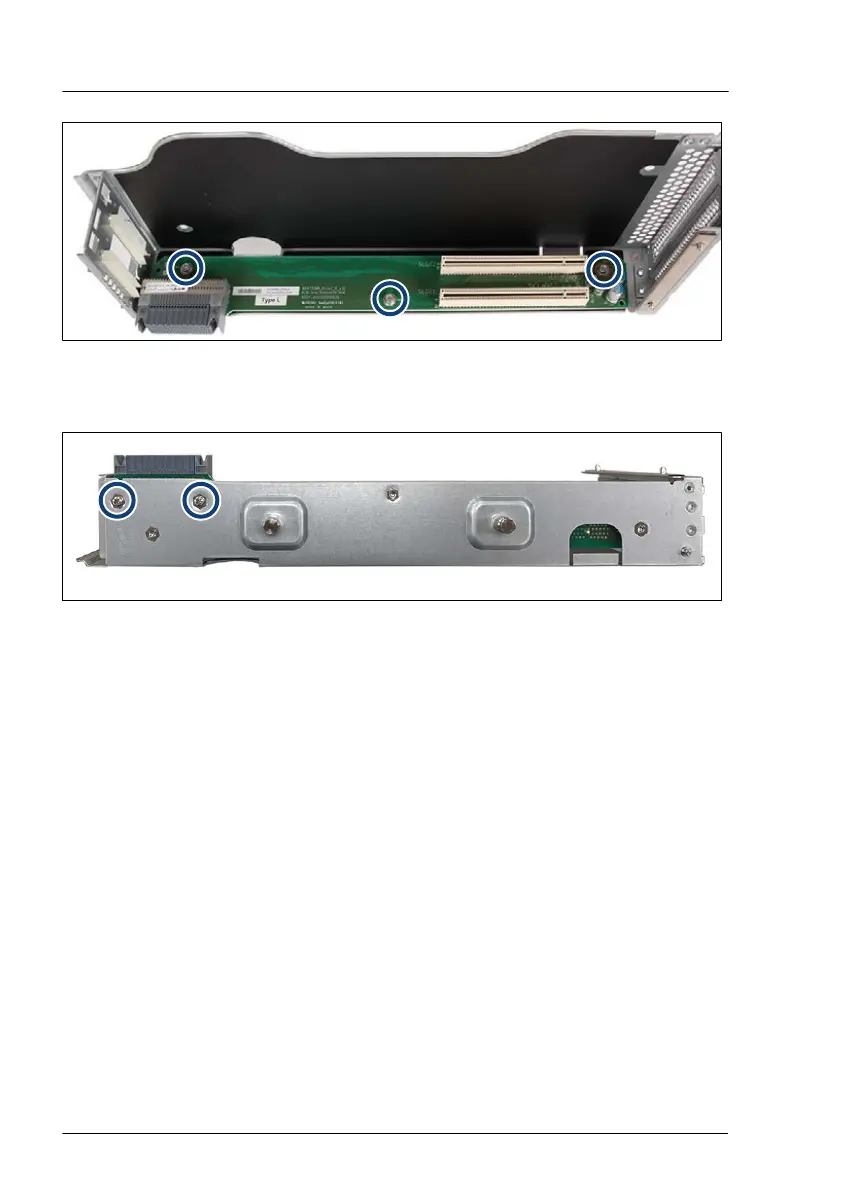

Figure 129: Removing the riser card - example riser module for slot 1/ 2 (A)
▶
Remove the three screws (see circles).
Figure 130: Removing the riser card - example riser module slot 1/2 (B)
▶
Remove the two screws on the bottom side (see circles).
▶
Remove the riser card.
Installing the new riser card
▶
Insert the riser card.
▶
Fasten the five screws (see Figure 129
and Figure 130).
▶
Install the expansion card, see "Installing the expansion card" on page
194
or the GPU card, see "Removing a GPU card" on page 222.
Concluding steps
▶
Install the corresponding riser module, see "Installing a riser module" on
page 63.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
Expansion cards and backup units
226 Upgrade and Maintenance Manual RX4770 M6
