Installing the FBU holder

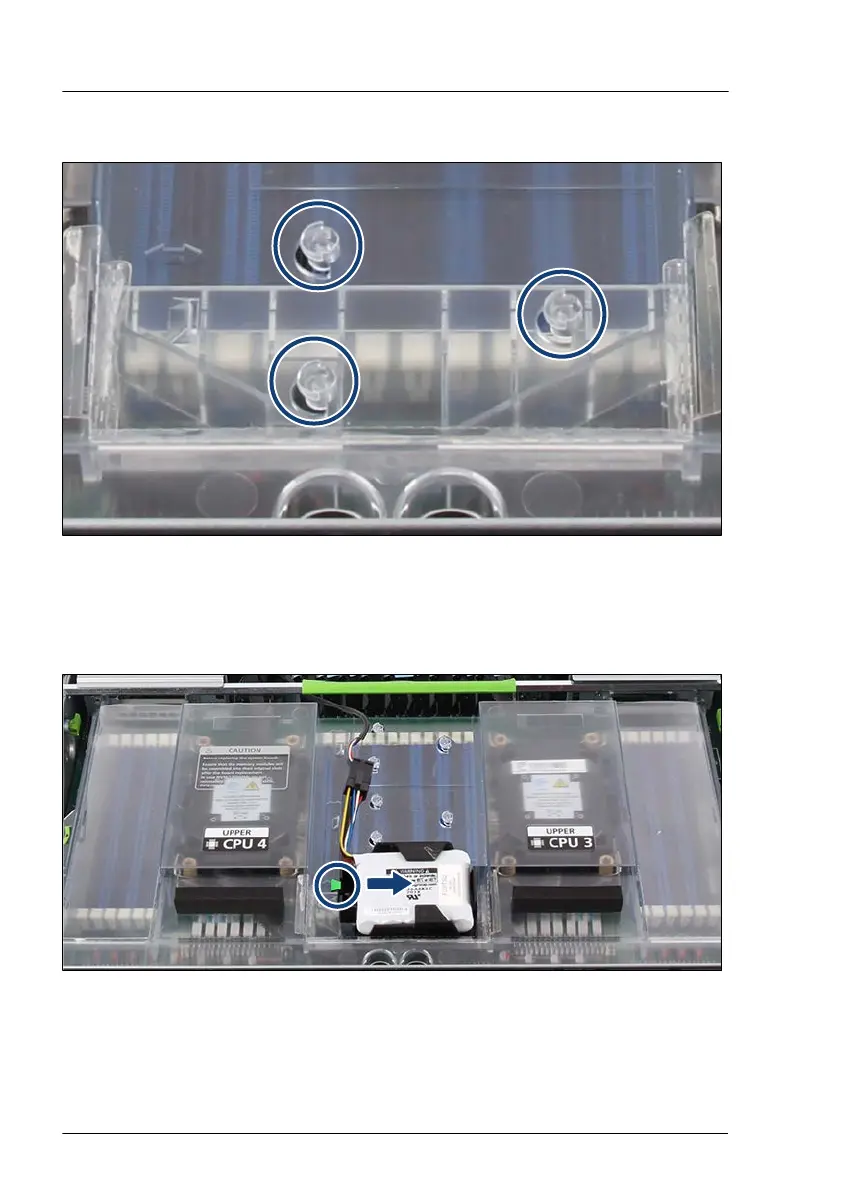

Figure 133: Bolts on the air duct
▶
Regard the three bolts on the air duct and key holes on the FBU holder (see
circles). The FBU holder is fixed with the bolts and the keyholes on the air
duct.
Figure 134: Installing the FBU holder
▶
Insert the FBU with the holder and slide it to the right until the holder
engages (see circle).
