At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.

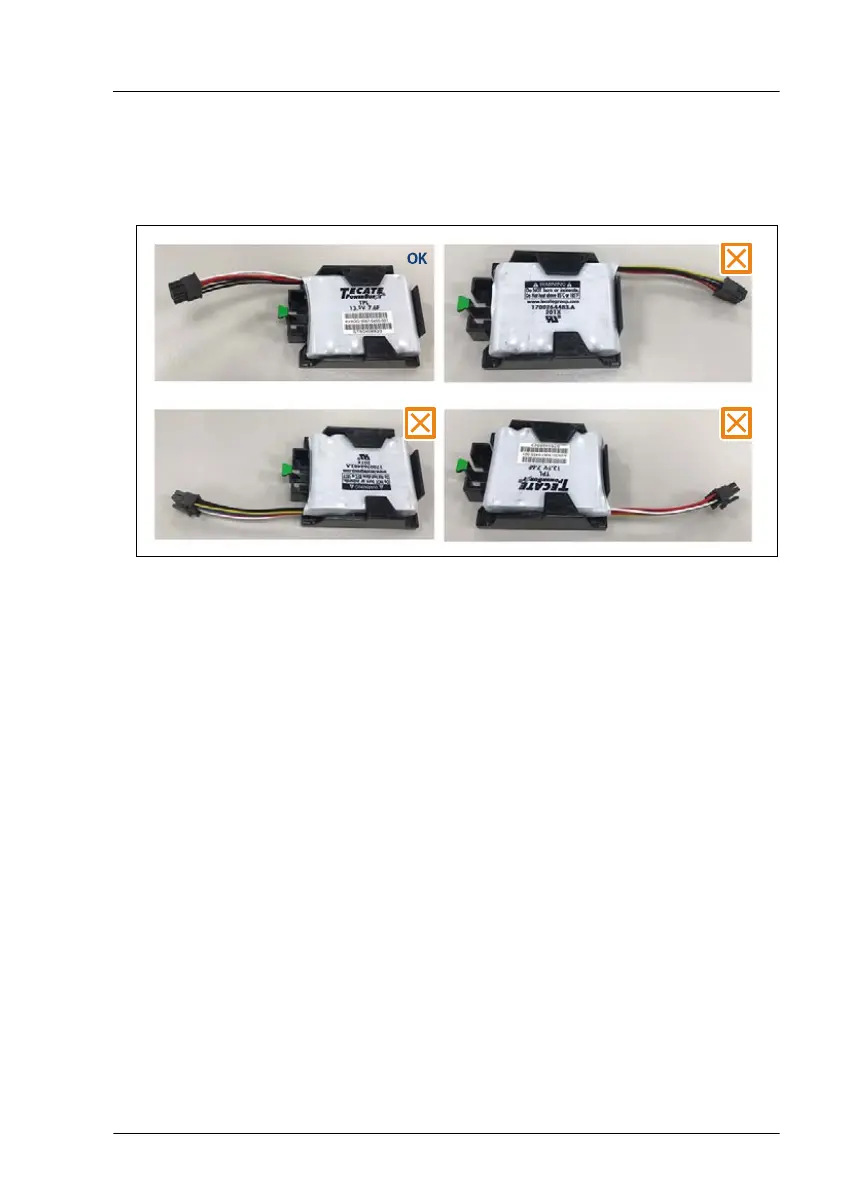

Notice the right position of the FBU cable:
▶
Push in the FBU until it locks in place (1).
▶
Connect the FBU adapter cable to the FBU (2).
▶
If applicable, connect the FBU adapter cable to the corresponding RAID
controller
.
Expansion cards and backup units
RX4770 M6 Upgrade and Maintenance Manual 229
