Removing the CPU socket cover

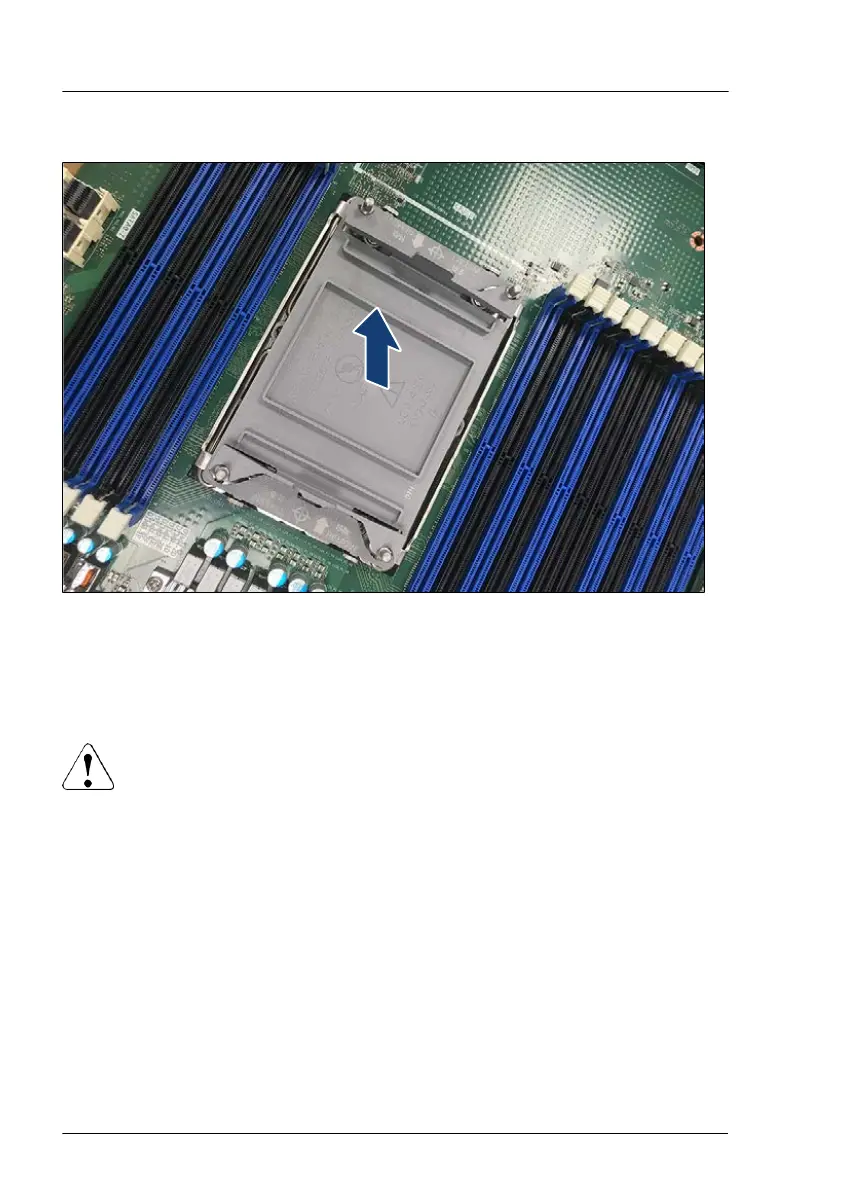

Figure 149: Removing the CPU socket cover
â–¶
Remove the CPU socket cover and save it for future use.
Installing the CPU
CAUTION
When replacing a system board
â–¶
Use a magnifying glass (recommended) to inspect the socket
spring contacts for damages from different angles. Do not use the
spare system board if any irregularities are visible. Possible
damages:
–
Contact spring is bent backwards upon itself
–
Contact spring tip position is shifted or out of alignment
â–¶
Never try to fix bent contact springs. Doing so may result in loss of
electrical performance and reliability.
Processor (CPU)
260 Upgrade and Maintenance Manual RX4770 M6
