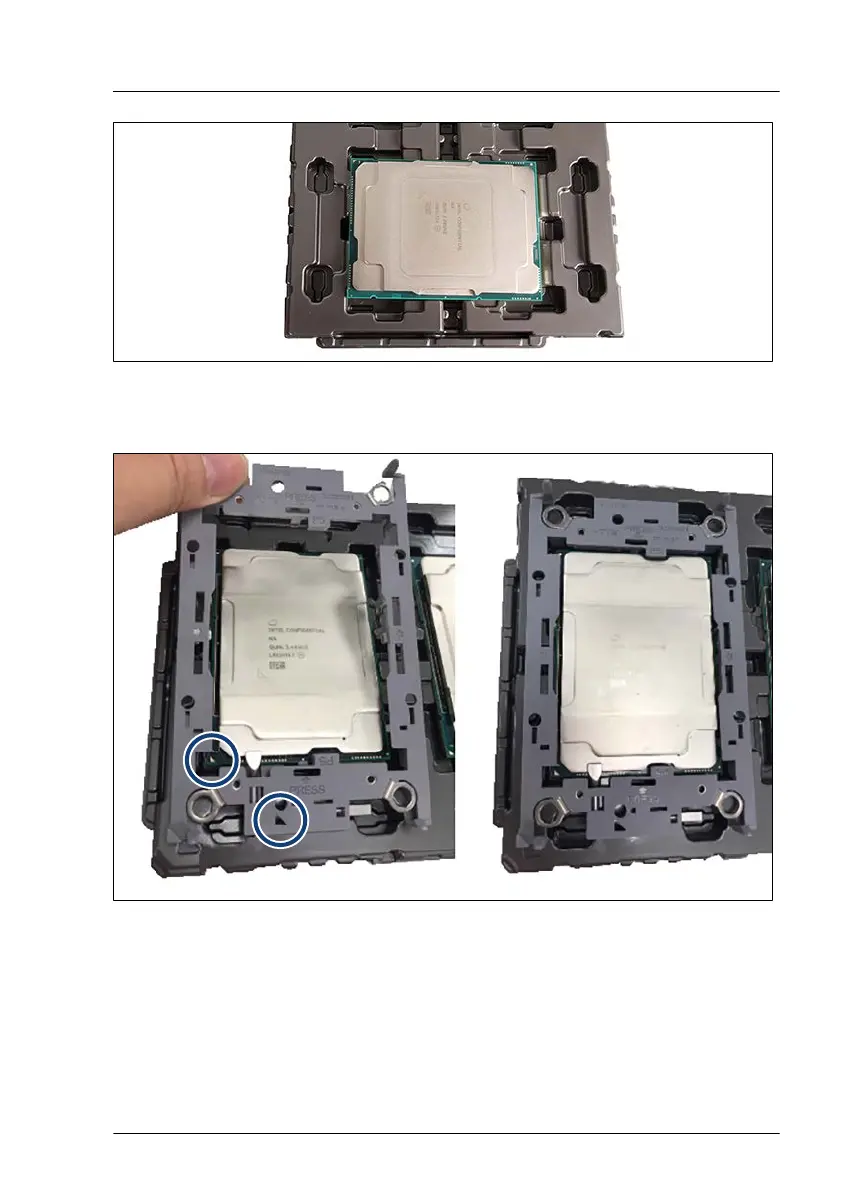

Figure 150: CPU in packaging
â–¶
Remain the CPU in the packaging.
Figure 151: Installing the CPU frame on the CPU
â–¶
Click the CPU frame into the CPU. Ensure that the triangle marks on CPU
and on CPU frame are on the same edge (see circles).
â–¶
Ensure that the CPU fits in its place.
Processor (CPU)
RX4770 M6
Upgrade and Maintenance Manual
261
260
