Note when tightening the screws of the CPU heat sink:
▶

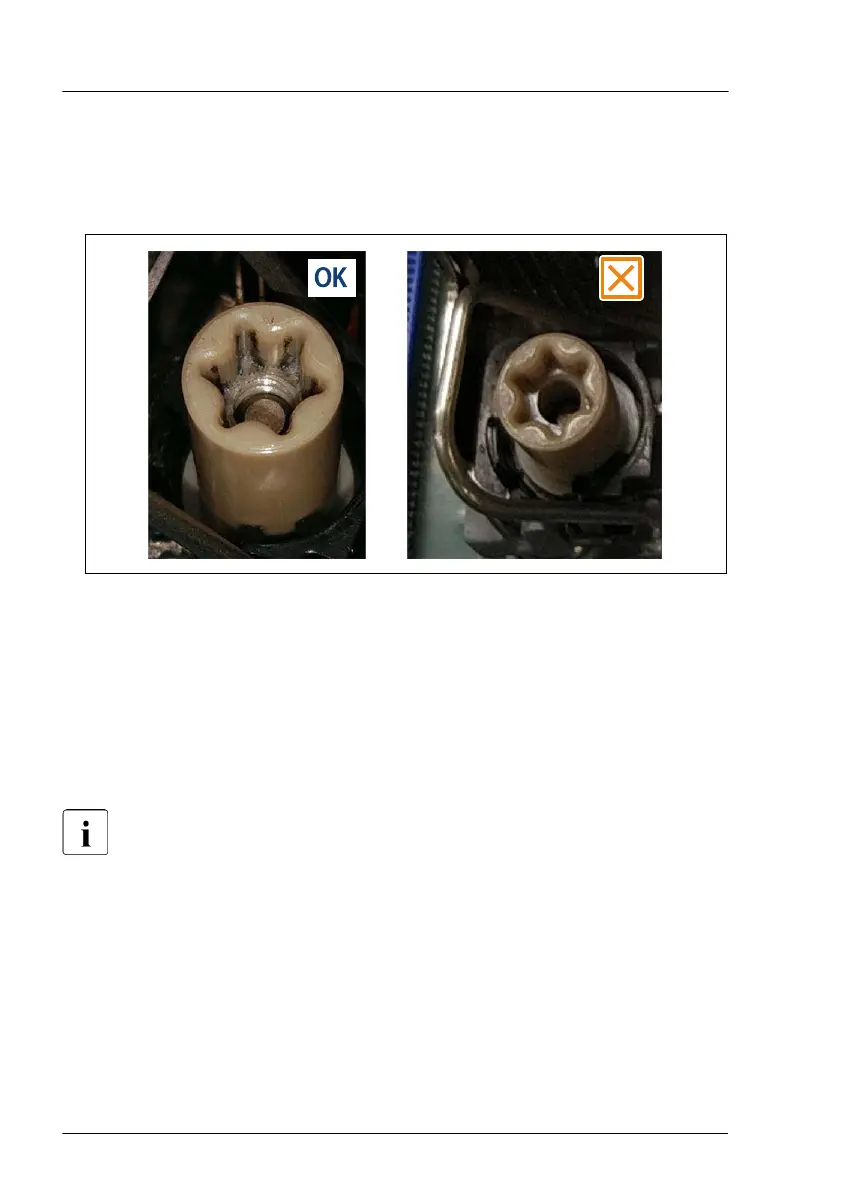

As shown in the figure below, tighten the screws while checking the screw
tip until it is visible through the screw hole.
▶
When you reach the above position, hold the screw driver with two fingers
and tighten the screw firmly.
Upgrading the main memory
▶
Select an adequate memory configuration for "4 CPUs populated", see
"Basic information" on page
256.
▶
Install memory modules, see "Installing a memory module" on page 245.
At least you need to install one DIMM memory module per CPU as
minimum configuration.
Concluding steps
▶
"Installing the air duct 1 (top system board)" on page 71
.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
