"Removing the air duct 1 (top system board)" on page 68.
Selecting the memory slot
â–¶
Choose the memory slot according to the configuration rules, see "Basic
information" on page
236.
Installing a memory module

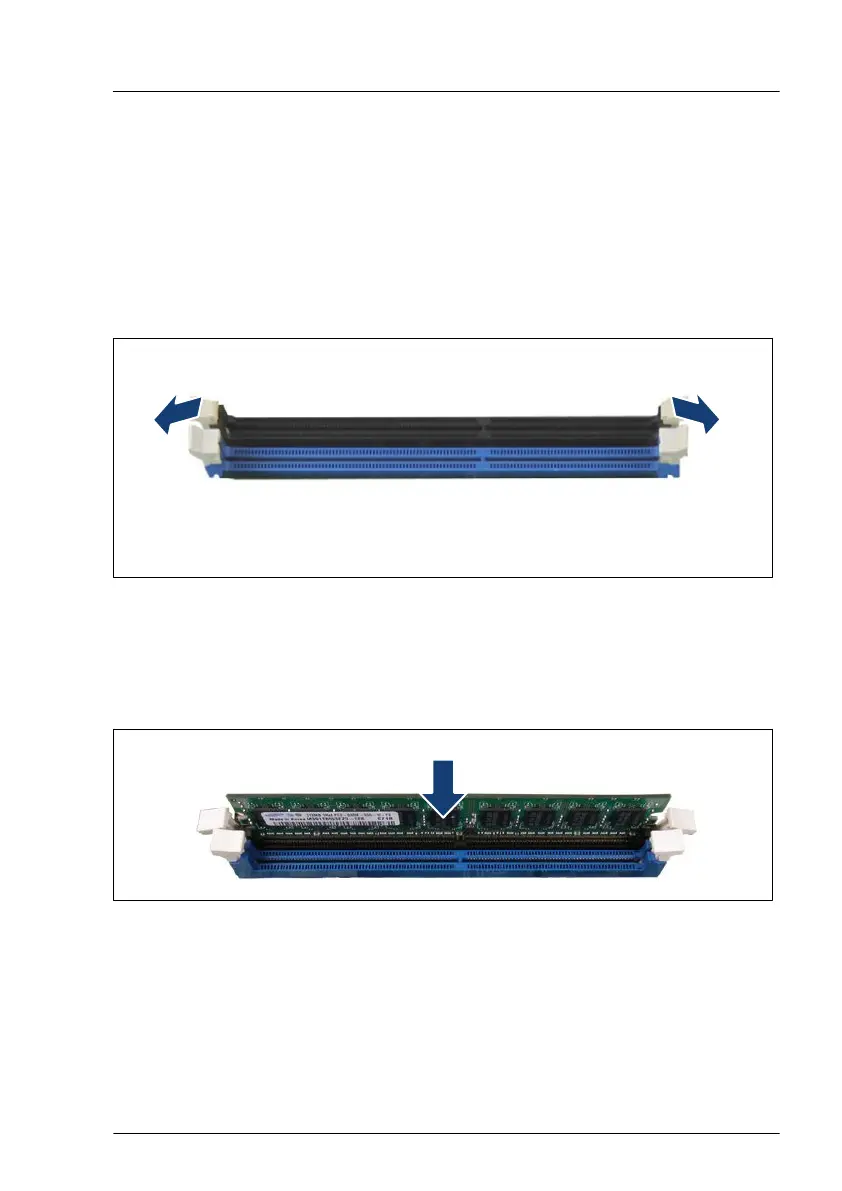

Figure 140: Opening the securing clips
â–¶
Press the securing clips on both sides of the memory slot concerned
outward.
â–¶
If applicable, remove the dummy module.
Figure 141: Installing a memory module
â–¶
Align the notch on the bottom of the module with the crossbar in the slot.
â–¶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
Main memory
RX4770 M6 Upgrade and Maintenance Manual 245
