Push the four latches inward.
▶
Lift the heat sink together with the CPU frame out of the chassis.
CAUTION
▶
Pay special attention not to damage any system board
components surrounding the CPU socket.
Removing the CPU

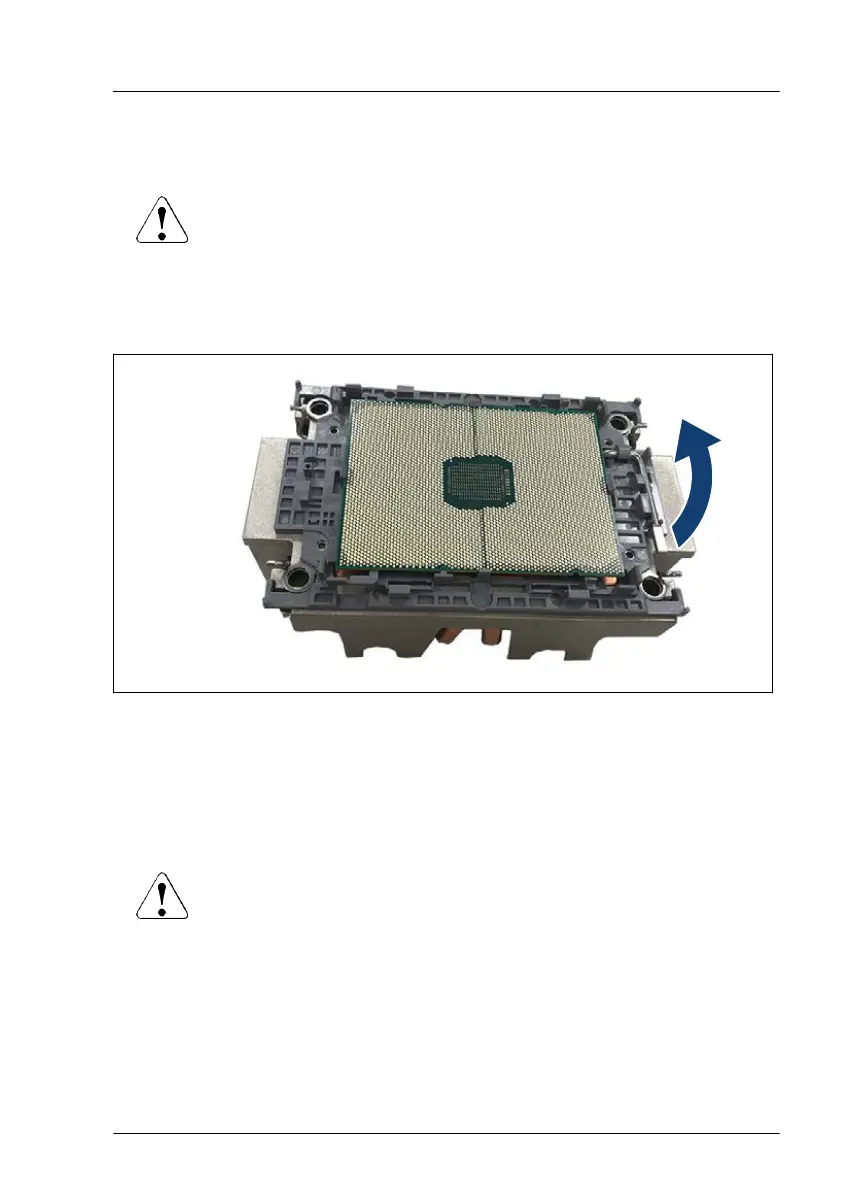

Figure 160: Removing the CPU
▶
Pull the lever of the CPU frame to lift up the CPU.
▶
Remove the CPU from the CPU frame.
▶
Clean residual thermal paste from the CPU surface using a lint-free cloth
and store the CPU in a save place.
CAUTION
CPUs are extremely sensitive to electrostatic discharge and therefore
must always be handled with care.
▶
After a CPU has been removed from its protective sleeve or from
its socket, place it upside down on a nonconducting, antistatic
surface.
▶
Never push a CPU over a surface.
Processor (CPU)
RX4770 M6 Upgrade and Maintenance Manual 273
