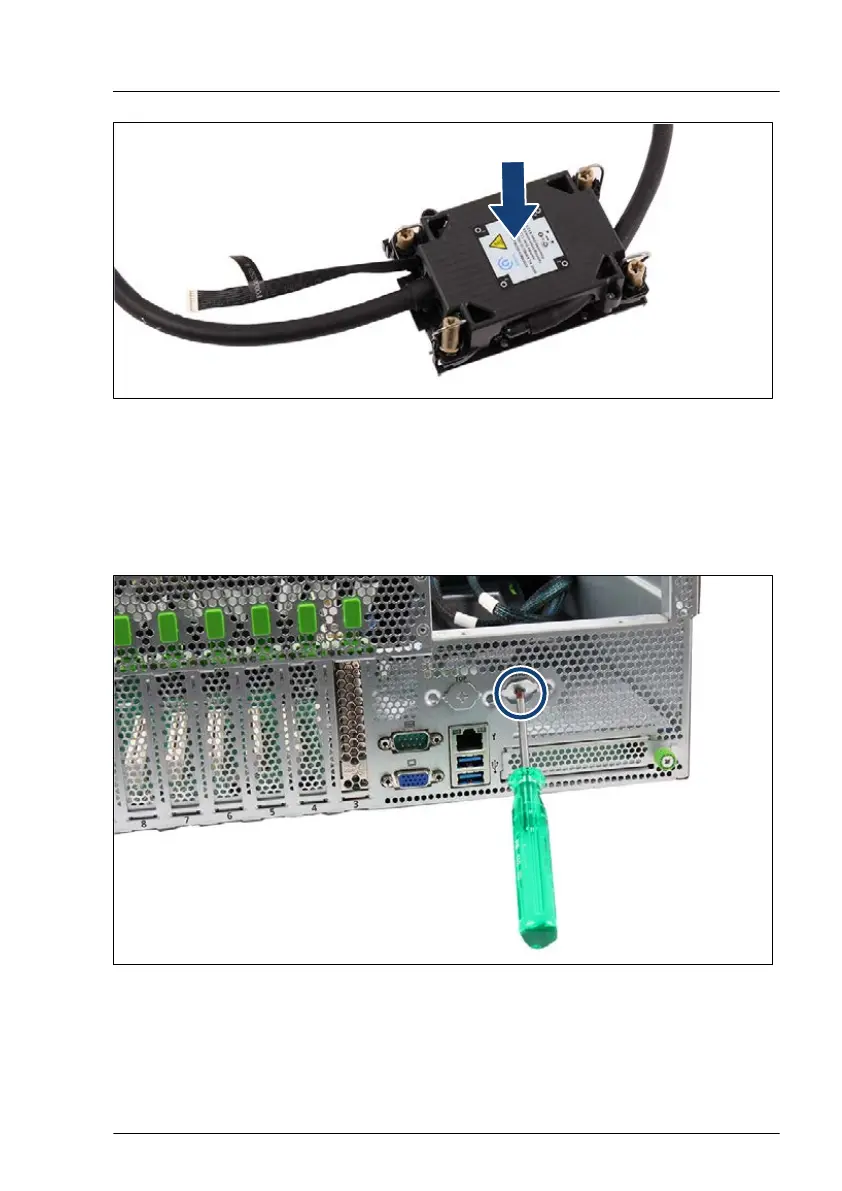

Figure 174: Assembling the LC kit (B)
â–¶
Place the heat sink onto the CPU socket.
â–¶
Assemble the second CPU and heat sink in the same way
.
Installing the LC kit
Figure 175: Breaking out the recesses
â–¶
Break out the four recesses at the server rear
.
Liquid cooling (LC)
RX4770 M6
Upgrade and Maintenance Manual
289
