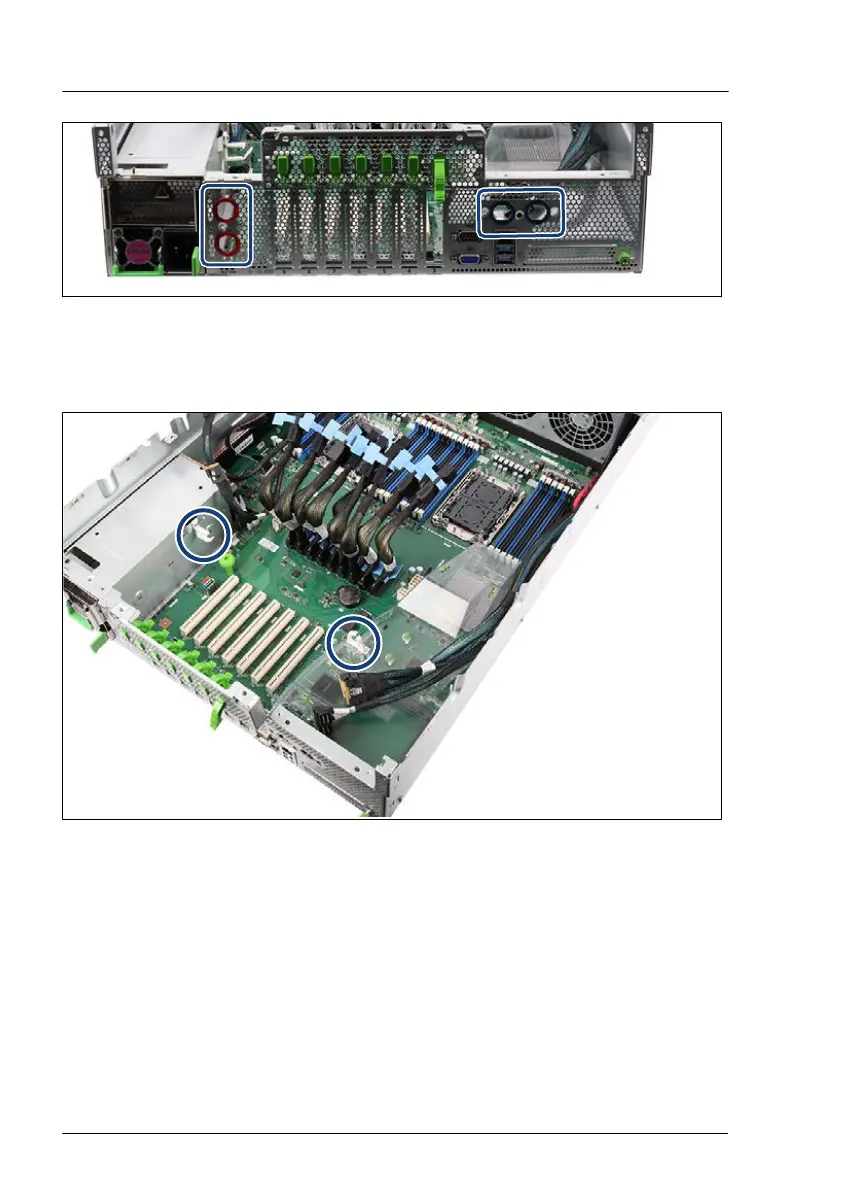

Figure 176: Marking the recesses
â–¶
Mark the recesses with the red marking rings and the blue marking rings
(see rectangles).
Figure 177: Installing the cable clips
â–¶
Install the two white cable clips (see circles).
â–¶
Fasten the cable clips with the two screws from the LC kit.
Liquid cooling (LC)
290
Upgrade and Maintenance Manual
RX4770 M6
289
291
