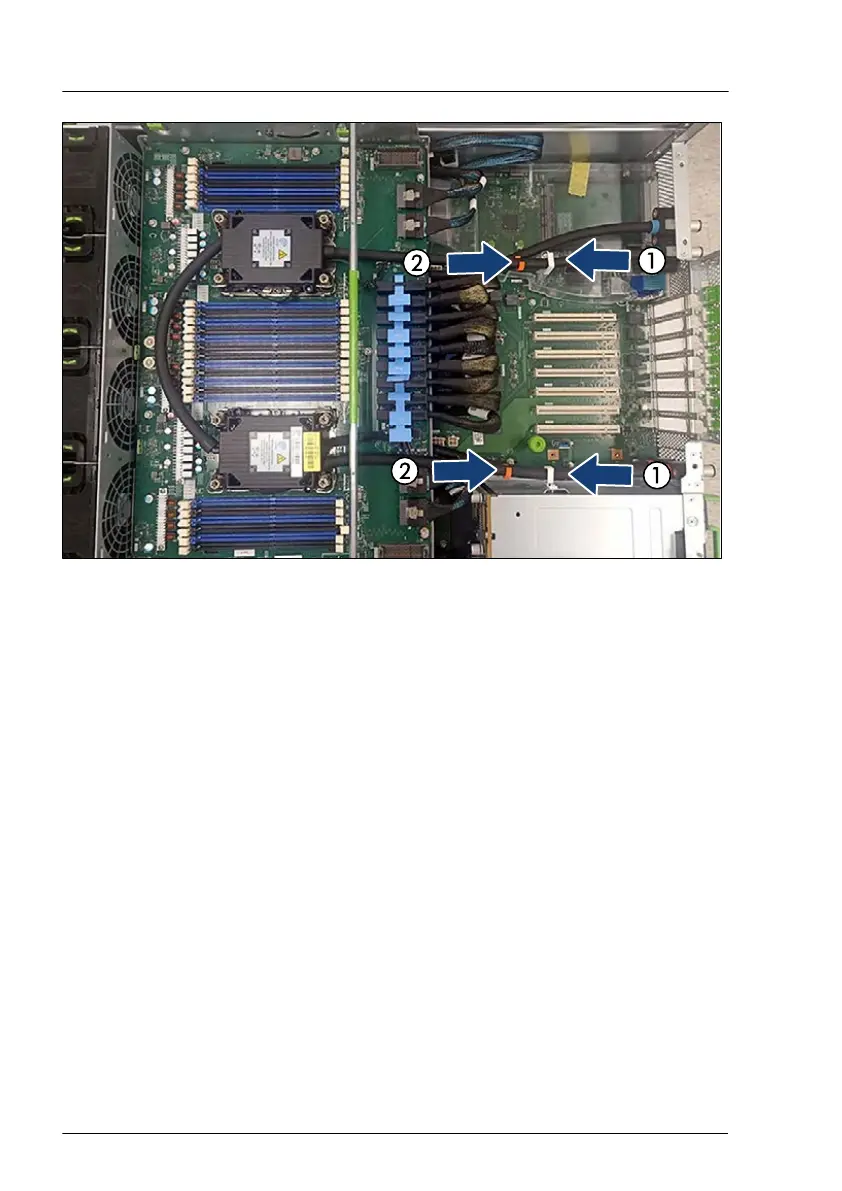

Figure 181: Fixing the tubes
▶
Fix all tubes in the white cable clips (1).
▶
Fix all tubes with the orange cable clips (2).
▶
Install the orange protective caps on the tube connectors.
Liquid cooling (LC)
