Removing the front VGA

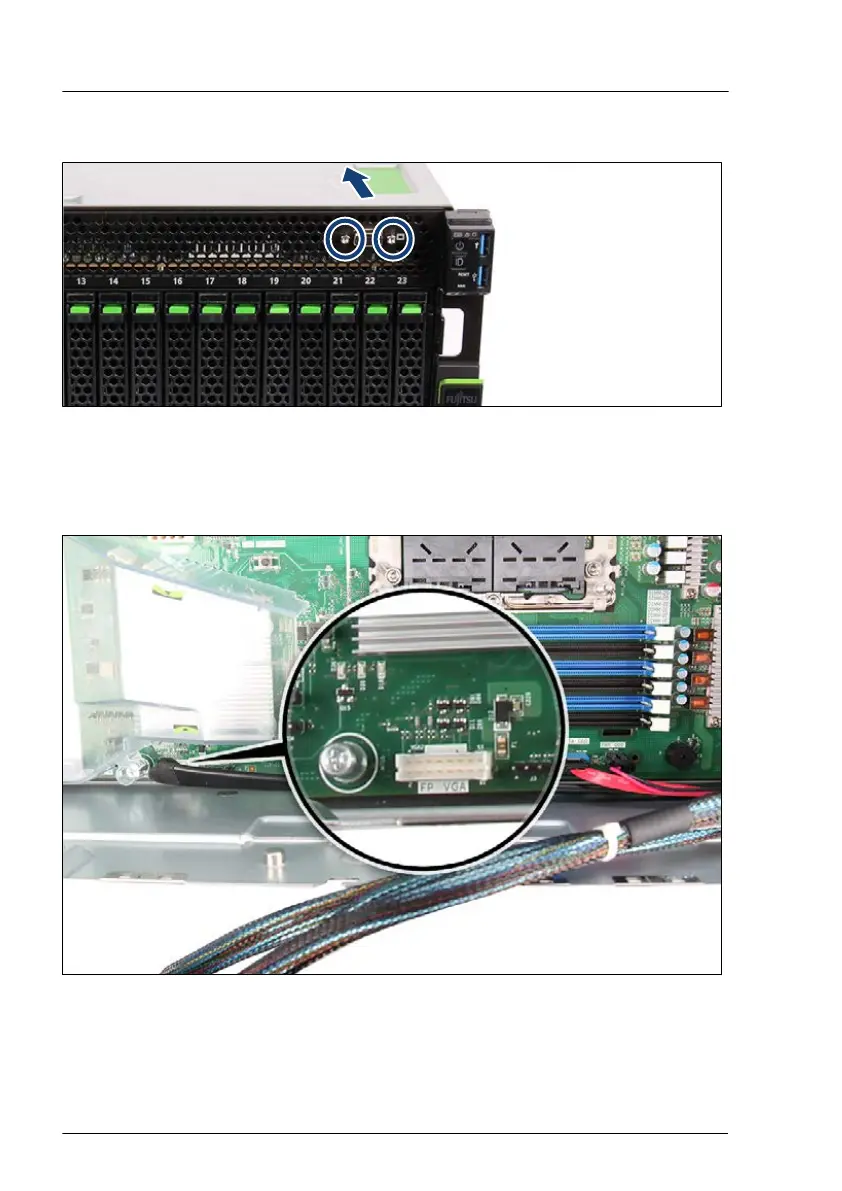

Figure 200: Removing the front VGA
â–¶
Remove the two screws (see circles).
â–¶
Pull the front VGA cable out of the opening from the inner side.
Figure 201: Installing the front VGA cable
â–¶
Disconnect the front VGA cable from the system board connector "FP VGA"
and remove it.
Front panel
324
Upgrade and Maintenance Manual
RX4770 M6
323
325
