Installing the front VGA

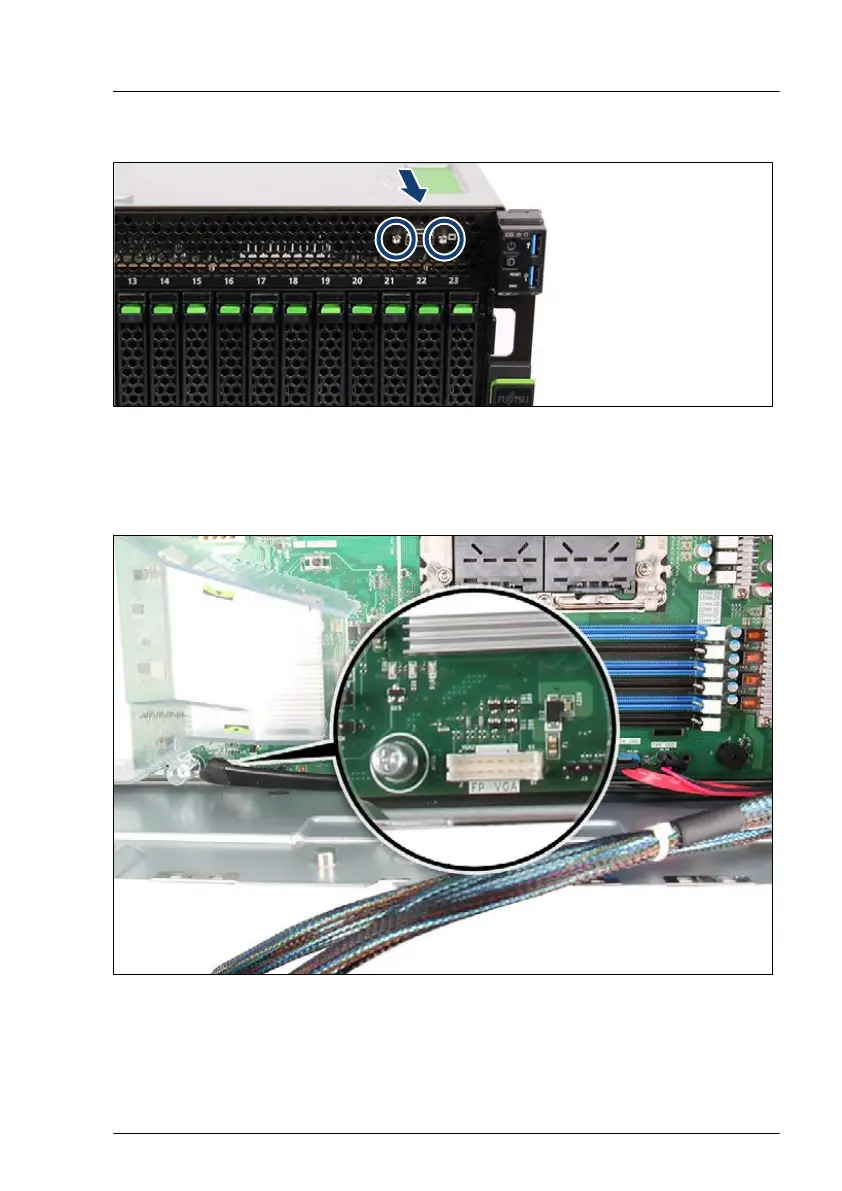

Figure 202: Installing the front VGA
▶
Insert the front VGA cable from the server inside through the opening.
▶
Fasten the front VGA connector with the two screws (see circles).
Figure 203: Installing the front VGA cable
▶
Connect the front VGA cable to the system board connector "FP VGA".
Front panel
