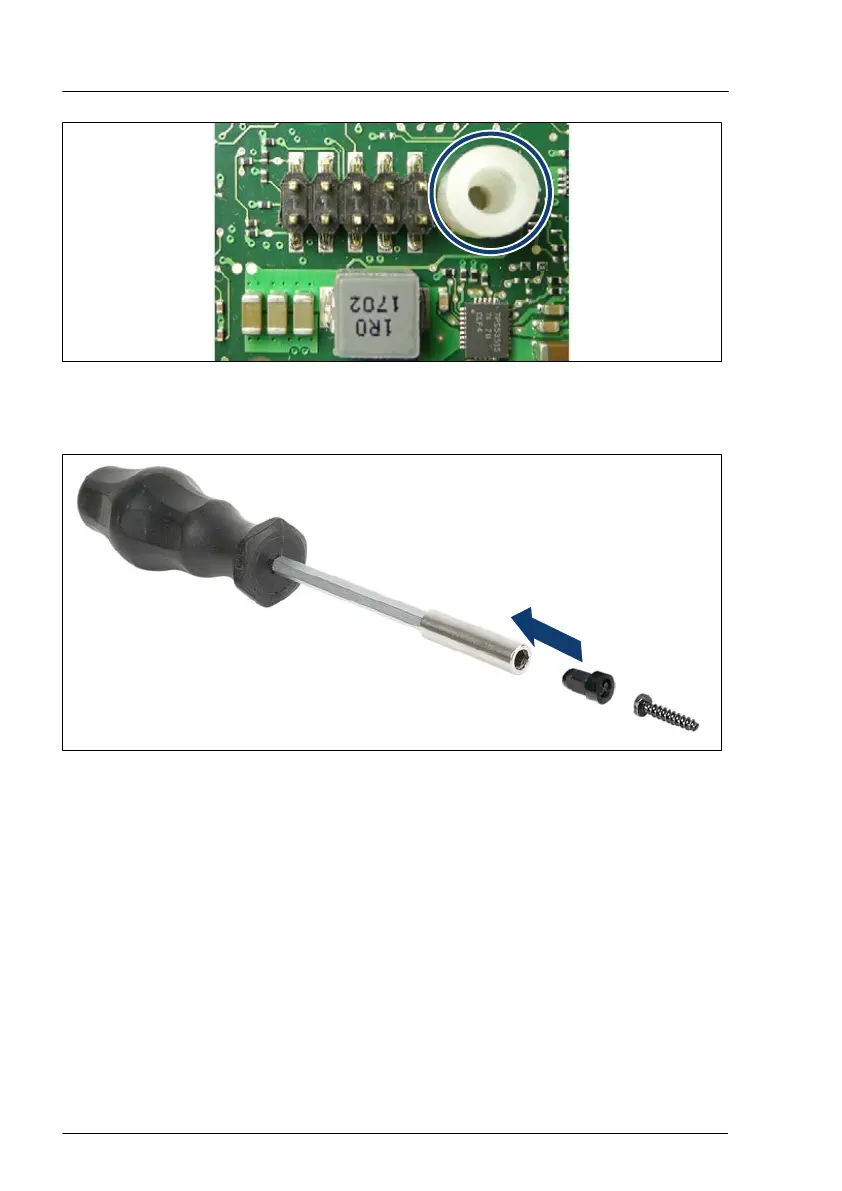

Figure 208: Inserting the TPM spacer on the system board
▶
Insert the TPM spacer into the hole on the system board.
Figure 209: TPM bit insert
▶
Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.
System board and components
334 Upgrade and Maintenance Manual RX4770 M6
