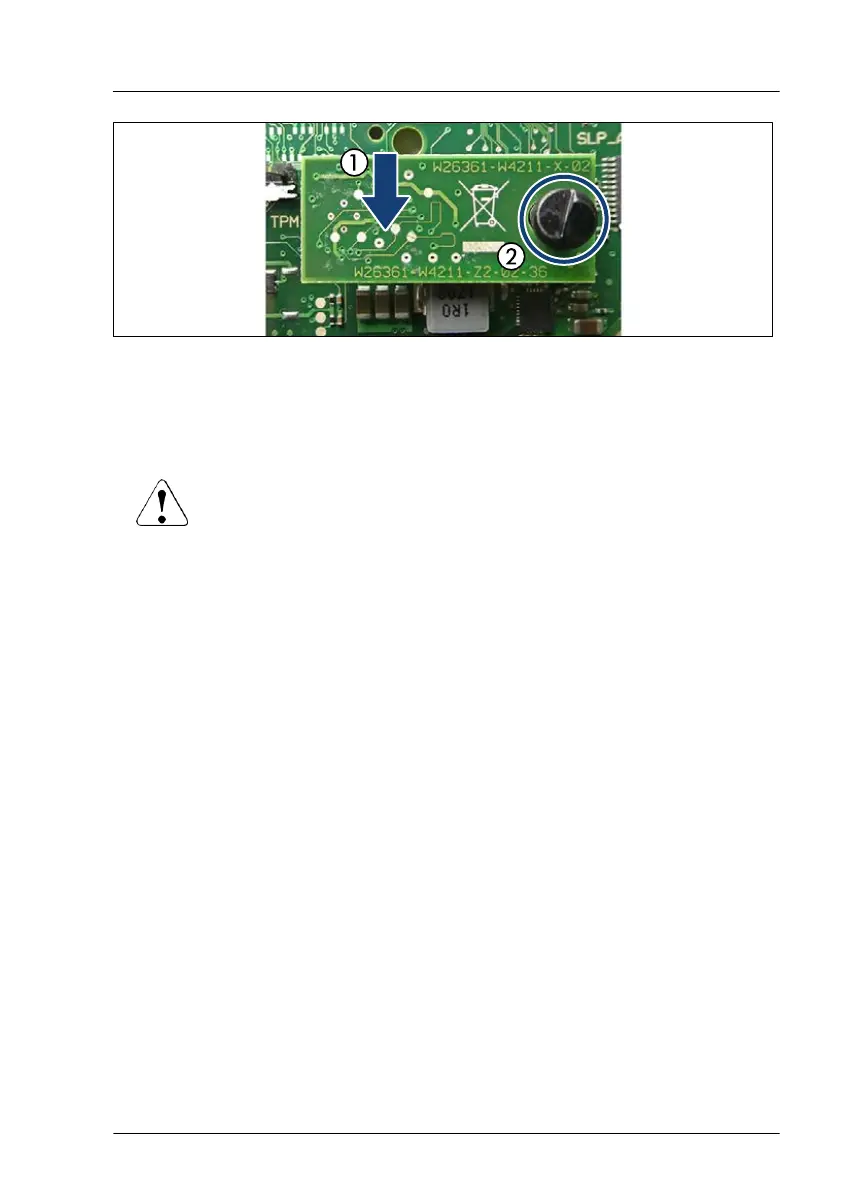

Figure 210: Installing the TPM
▶
Connect the TPM to the system board (1).
▶
Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Stop it by extent where the head of the screw lightly touches the
TPM. Torque: 0.6 Nm (not used in Japan).
Concluding steps
▶
"Installing the OCP air duct" on page
73
.
▶
"Installing the top system board carrier" on page 76.
▶
"Installing the air duct 1 (top system board)" on page 71.
▶
"Installing the fan cage" on page 66.
▶
Install the riser modules, see "Installing a riser module" on page 63.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
▶
"Resuming BitLocker functionality" on page 104.
▶
Enable the TPM in the system board BIOS, see "Enabling the TPM in the
system board BIOS".
System board and components
RX4770 M6 Upgrade and Maintenance Manual 335
