Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 48.
▶
Remove the riser modules, see "Removing a riser module" on page 63.
▶
"Removing the fan cage" on page 64.
▶
"Removing the air duct 1 (top system board)" on page 68.
▶
"Removing the top system board carrier" on page 73.
▶
"Removing the OCP air duct" on page 70.
Removing the M.2 SSD

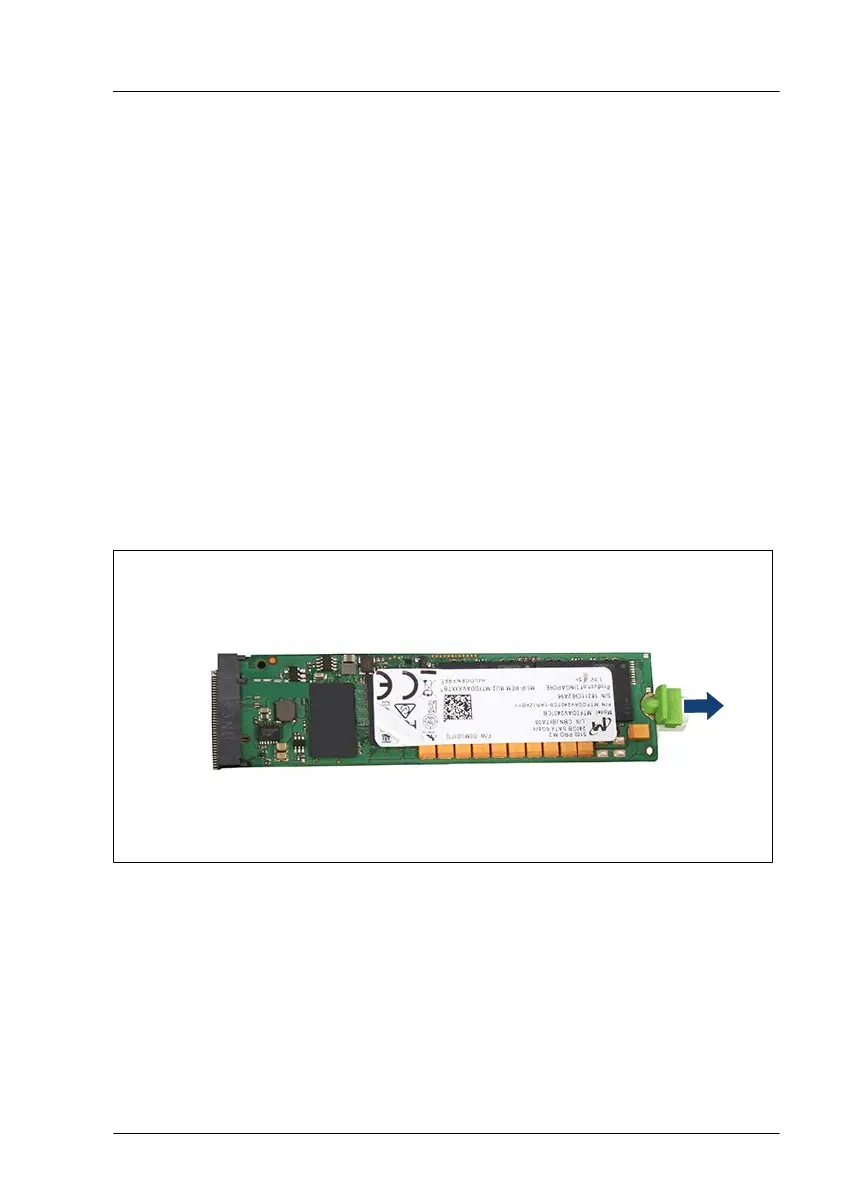

Figure 220: Removing the M.2 SSD (A)
▶
Push the green latch in direction of the arrow.
System board and components
RX4770 M6 Upgrade and Maintenance Manual 357
