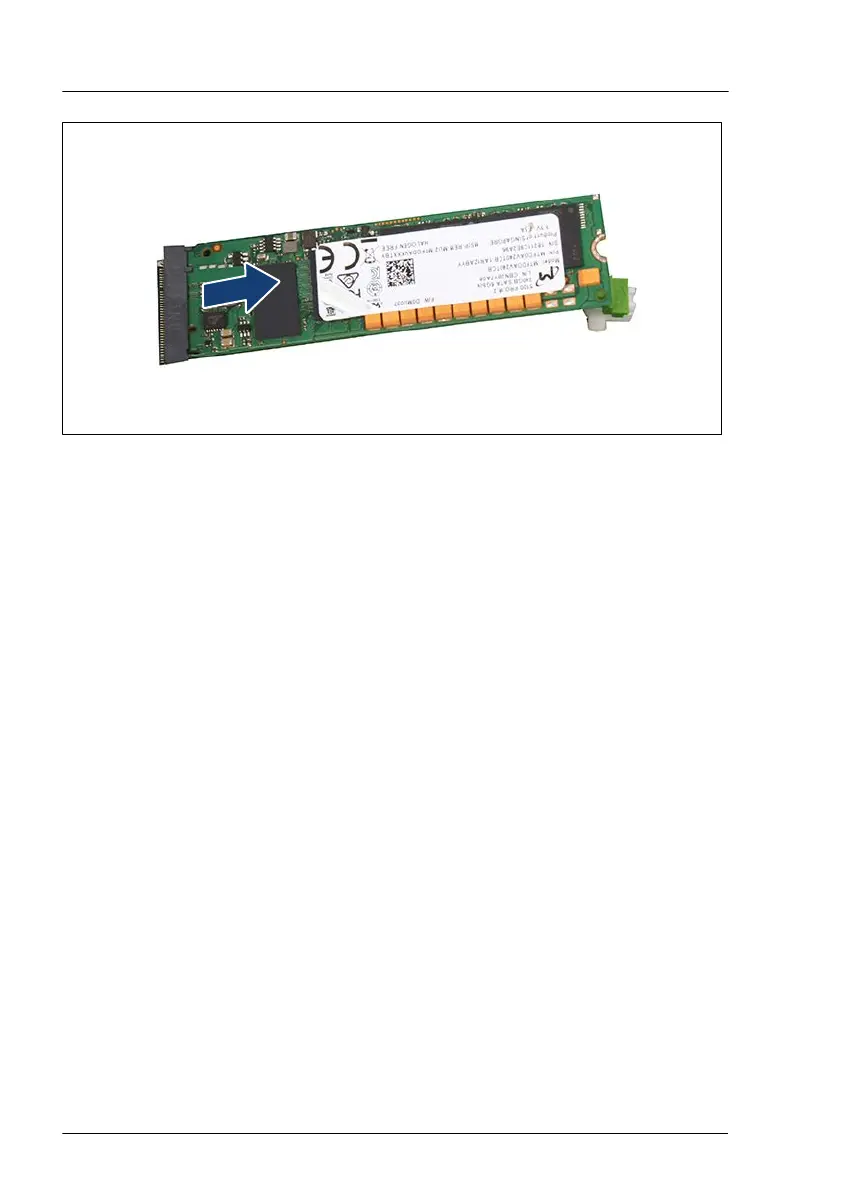

Figure 221: Removing the M.2 SSD (B)
▶
Take the M.2 SSD out of its slot at a slight angle.
▶
If applicable, remove the second M.2 SSD in the same way
.
Concluding steps
▶
"Installing the OCP air duct" on page 73.
▶
"Installing the top system board carrier" on page 76.
▶
"Installing the air duct 1 (top system board)" on page 71.
▶
"Installing the fan cage" on page 66.
▶
Install the riser modules, see "Installing a riser module" on page 63.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 59.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
System board and components
