Tools: Phillips PH2 / (+) No. 2 screw driver (for cover 2)
Preliminary steps
▶
If applicable,"Removing the front cover with lock" on page 45
.
▶
"Shutting down the server" on page 46.
▶
"Disconnecting the power cord" on page 47.
▶
"Getting access to the component" on page 48.
▶
Remove the riser module for PCIe slot 10 and PCIe slot 11, see "Removing
a riser module" on page 63.
Installing the Dual microSD 64GB Enterprise

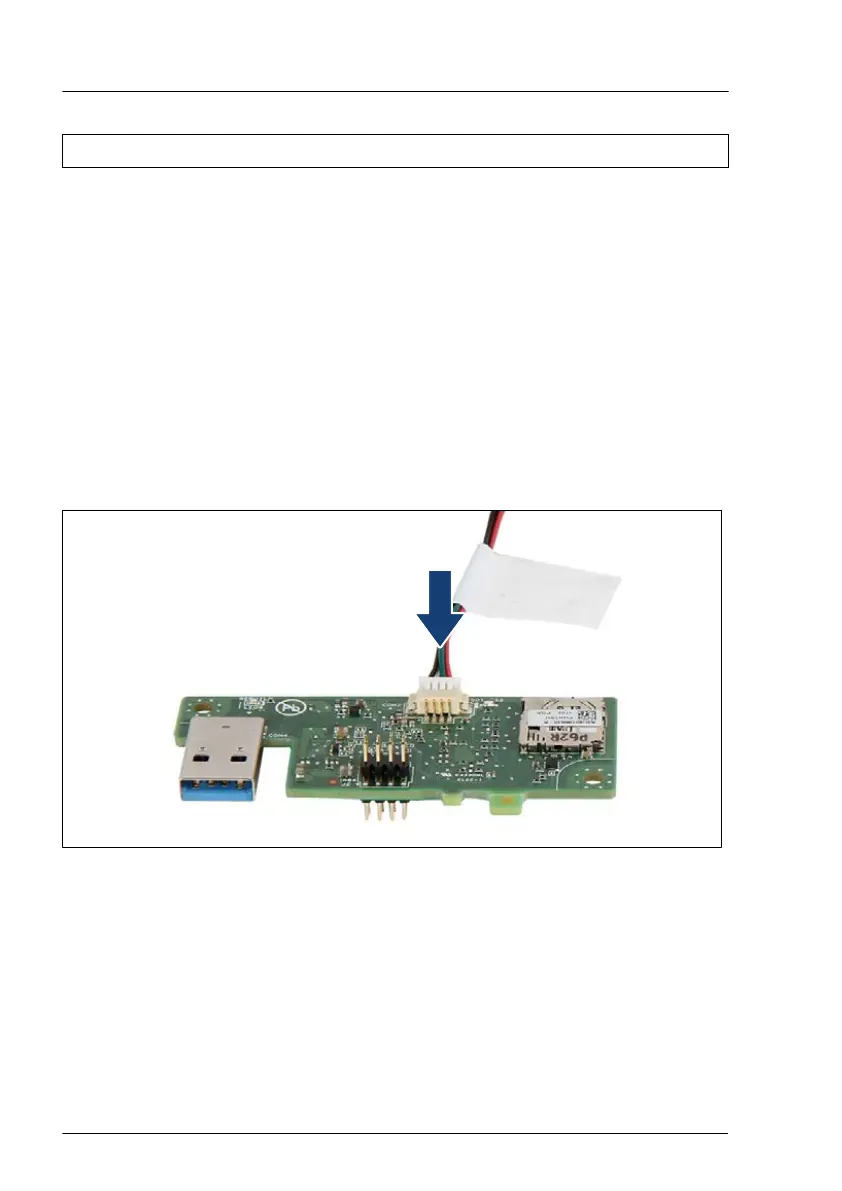

Figure 223: Connecting the cable to the Dual microSD 64GB Enterprise
▶
Connect the cable to connector "CON2" on the Dual microSD 64GB
Enterprise.
System board and components
362 Upgrade and Maintenance Manual RX4770 M6
