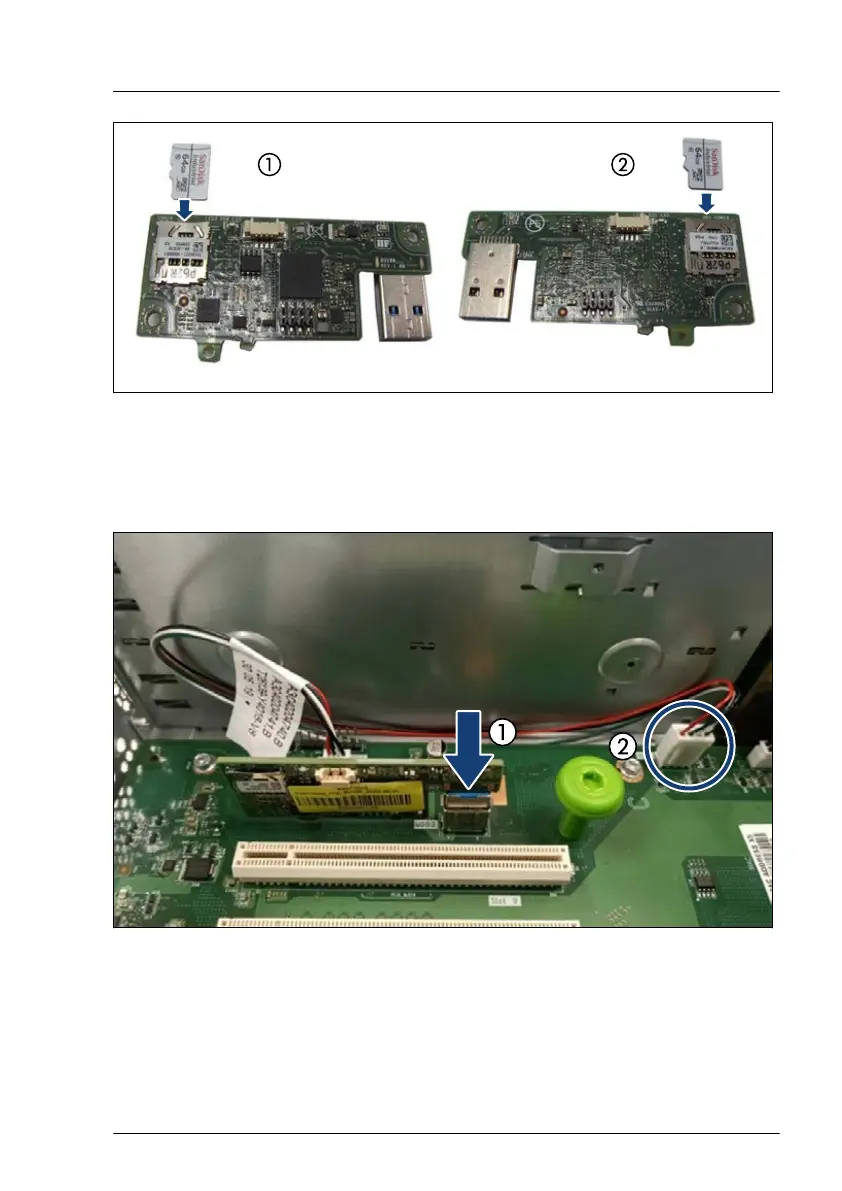

Figure 224: Installing the microSD card
â–¶
Install the microSD card on the top side (1) or on the bottom side (2) or in
both sides in the corresponding slot. For the installation of the microSD card,
see "Replacing the microSD card" on page 369
.
Figure 225: Installing the Dual microSD 64GB Enterprise
â–¶
Install the Dual microSD 64GB Enterprise into the connector "Internal USB
3.0" on the bottom system board (1).
â–¶
Connect the cable to the connector "ROC" on the bottom system board (2).
System board and components
RX4770 M6 Upgrade and Maintenance Manual 363
