Onboard indicators
H
CPU 3 DIMM 2Q
CPU 3 DIMM 1P
CPU 3 DIMM 1N
CPU 3 DIMM 2N
CPU 3 DIMM 1Q
CPU 3 DIMM 2P
CPU 4 DIMM 1W
CPU 4 DIMM 2W
CPU 4 DIMM 1V
CPU 4 DIMM 2V
CPU 4 DIMM 1U
CPU 4 DIMM 2U
CPU 4 DIMM 2X
CPU 4 DIMM 1X
CPU 4 DIMM 2Y
CPU 4 DIMM 1Y
CPU 4 DIMM 2Z
CPU 4 DIMM 1Z
CPU 3 DIMM 1R
CPU 3 DIMM 2S
CPU 3 DIMM 2T
CPU 3 DIMM 1T
CPU 3 DIMM 2R
CPU 3 DIMM 1S
CPU 4
CPU 3
G
F
F
F
K
K
H
H
H
K
F
K
LC3
Slimline CN1
Slimline CN2
Slimline CN3
Slimline CN4
LC4
G

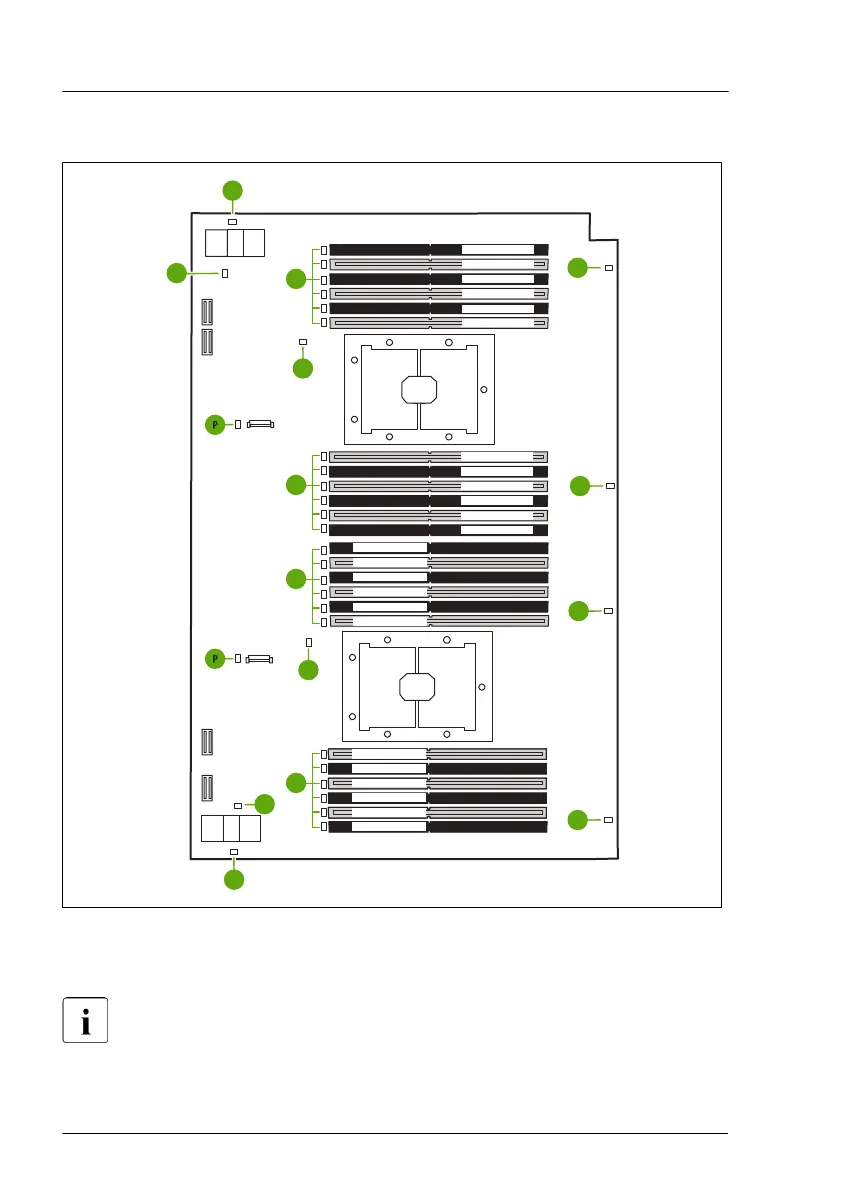

Figure 246: Onboard indicators of the top system board D3892 - B100
1 Indicate CSS button
LEDs A, B and C are visible from outside on the server rear. All other
LEDs are only visible if the server cover has been opened.
